Product Overview
MC34PF8100A0EP is a PF8100 12-channel power management integrated circuit for high performance applications. It features seven high-efficiency buck converters and four linear regulators for powering the processor, memory and miscellaneous peripherals. Built-in one-time programmable (OTP) memory stores key startup configurations, drastically reducing external components typically used to set output voltage and sequence of external regulators. Regulator parameters are adjustable through high-speed I2C after startup, offering flexibility for different system states. Typical applications include high-end consumer and industrial.
- OTP (One time programmable) memory for device configuration
- Up to seven high-efficiency buck converters
- RTC supply and coin cell charger, watchdog timer/monitor
- Monitoring circuit to fit automotive safety integrity level (ASIL) B
- 3.4MHz I²C communication interface
- Main input supply voltage is 5.5V maximum
- Ambient operating temperature range from -40 to 105°C
- 56-pin HVQFN package
Product details
| IC Type |
PMIC |
| No. of Step-Down DC - DC Converters |
7 |
| No. of Regulated Outputs |
12 |
| No. of Pins |
56Pins |
| Operating Temperature Max |
105°C |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Supply Voltage |
5.5V |
| No. of LDO Regulators |
4 |
| IC Case / Package |
HVQFN |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
NXP |
| Part Number |
MC34PF8100A0EP |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

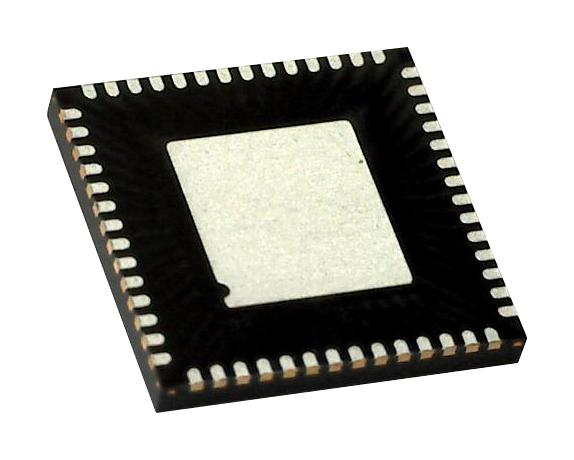

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
