Product Overview
MC34PF1550A6EP is a power management integrated circuit (PMIC) for low-power application processors. The PF1550 is a power management integrated circuit (PMIC) designed specifically for use with i.MX processors on low-power portable, smart wearable, and Internet-of-Things (IoT) applications. With three high-efficiency buck converters, three linear regulators, an RTC supply, and a battery linear charger, the PF1550 can provide power for a complete battery-powered system, including application processors, memory, and system peripherals. Typical applications include smart mobile/wearable devices, low-power IoT applications, wireless game controllers, Embedded monitoring systems, home automation, POS, and E-Read.
- Input voltage range to PMIC VBUSIN pin via USB bus or AC adapter: 4.1V to 6V
- DDR memory reference voltage, VREFDDR, 0.5V to 0.9V, 10mA
- User programmable standby, sleep/low-power, and off (REGS-DISABLE) modes
- I2C interface and input control
- Quiescent current < 1.5μA in low-power mode
- Temperature range from -40°C to 105°C (for use in industrial applications)
- 40-pin QFN package
- 6 (i.MX 6ULL with DDR3L) programming
Product details
| IC Type |
PMIC for i.MX 6ULL Processors |
| No. of Step-Down DC - DC Converters |
3 |
| No. of Regulated Outputs |
8 |
| No. of Pins |
40Pins |
| Operating Temperature Max |
105°C |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Supply Voltage |
6V |
| No. of LDO Regulators |
3 |
| IC Case / Package |
HVQFN |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| MSL |
MSL 3 - 168 hours |
Other details

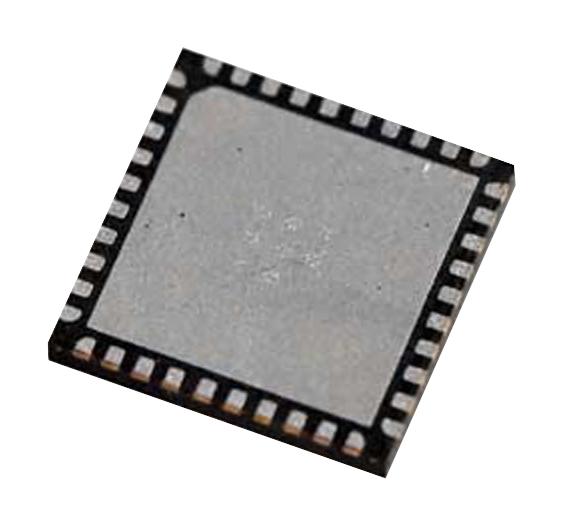

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
