Product Overview
MC32PF8121F2EP is a 12-channel power management integrated circuit for high performance applications. The PF8121 is a power management integrated circuit (PMIC) designed for high performance consumer applications. It features seven high efficiency buck converters and four linear regulators for powering the processor, memory and miscellaneous peripherals. Built-in one-time programmable (OTP) memory stores key startup configurations, drastically reducing external components typically used to set output voltage and sequence of external regulators. Regulator parameters are adjustable through high-speed I2C after startup, offering flexibility for different system states. Applications include IoT devices, industrial.
- Up to seven high-efficiency buck converters
- RTC supply and coin cell charger
- Watchdog timer/monitor
- Voltage and system monitoring circuits
- One-time programmable (OTP) device configuration
- 3.4MHz I2C communication interface
- i.MX8M Mini NXP processor
- HVQFN56 package
- Ambient operating temperature range from -40 to 85°C
Product details
| IC Type |
PMIC for i.MX8M Mini Processors |
| No. of Step-Down DC - DC Converters |
7 |
| No. of Regulated Outputs |
12 |
| No. of Pins |
56Pins |
| Operating Temperature Max |
85°C |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Supply Voltage |
5.5V |
| No. of LDO Regulators |
4 |
| IC Case / Package |
HVQFN |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
NXP |
| Part Number |
MC32PF8121F2EP |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

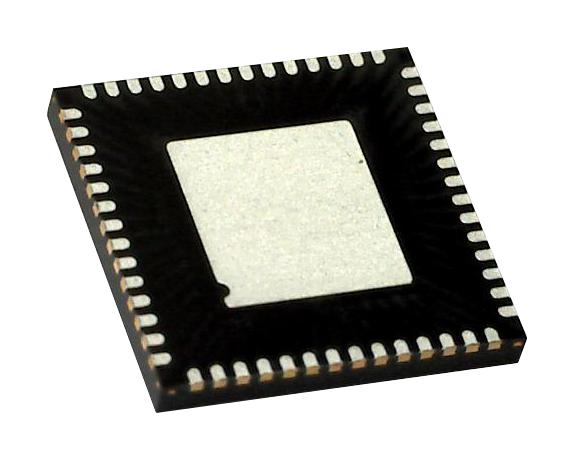

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
