Product Overview
MC56F83763VLH is a performance-level digital signal controller. It leverages the high-performance 56800EX DSP core, with both core and bus frequency up to 100MHz. Plus, the integration of all kinds of high-performance peripherals, this product extends the DSC performance to its highest level, which is extremely suitable for high-performance digital power conversion and high-performance single/dual motor control applications. Target applications include industrial control, home appliances, general-purpose inverters, smart sensors, fire and security systems, switched-mode power supply and power management, power distribution systems, motor control (ACIM, BLDC, PMSM, SR, stepper), uninterruptible power supplies (UPS), solar inverters, and medical monitoring applications.
- Single 3.3V power supply
- Instruction set supports both fractional arithmetic and integer arithmetic
- Four 36-bit accumulators, including extension bits
- Instruction set supports both DSP and controller functions
- Controller-style addressing modes and instructions enable compact code
- Software subroutine and interrupt stack, with the stack's depth limited only by memory
- 100MHz core frequency
- 128kB flash, 48kB RAM, 32kB ROM
- 64-pin LQFP package, AEC-Q100 qualified
- Temperature range from –40°C to 105°C
Product details
| Product Range |
MC56F837xx Series |
| Flash Memory Size |
128KB |
| Embedded Interface Type |
CAN, I2C, SCI, SPI |
| DSC Case Style |
LQFP |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
AEC-Q100 |
| Core Frequency |
100MHz |
| No. of I/O's |
54I/O's |
| Core Supply Voltage |
1V |
| No. of Pins |
64Pins |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
NXP |
| Part Number |
MC56F83763VLH |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

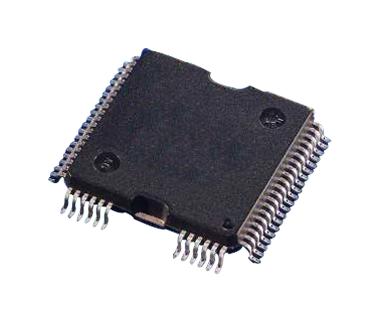

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
