Product Overview
S32G398ASCK1VUCT is a S32G3 high-performance vehicle network processor. It combines controller area network (CAN), local interconnect network (LIN), and FlexRay networking with high data rate Ethernet networking. It also combines a functional safe-core infrastructure with MPU cores and includes high-level security features. Combining ASIL D safety, hardware security, high-performance real-time and application processing and network acceleration, this chip targets applications that includes: service-oriented gateways and domain controllers, safety processor for ADAS and autonomous driving, high-performance central compute nodes, FOTA host controlling secure software image downloads and their distribution to the ECUs in the network, security services and key management, smart antennas.
- Real-time performance- additional pair of Cortex-M7 lockstep cores
- Ethernet interface bandwidth - increased speed from 1Gbps to 2.5Gbps on two SGMII interfaces
- Up to 1.3GHz maximum frequency
- 3× Cortex-M7 core and 15MB SRAM MCU performance identifier and system RAM size
- 400MHz (Cortex-M7 core), 1300MHz (Cortex-A53 core) arm core speed
- Temperature (T ) range from -40°C to 105°C
- 525 FC-PBGA package
Product details
| Product Range |
S32G3 Family Microprocessors |
| Program Memory Size |
- |
| No. of Pins |
525Pins |
| Supply Voltage Max |
870mV |
| Interfaces |
CAN, Ethernet, I2C, LIN, SPI, UART, USB |
| Data Bus Width |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q100 |
| MPU Family |
S32G3 |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of CPU Cores |
11Cores |
| IC Case / Package |
FCPBGA |
| Supply Voltage Min |
750mV |
| Operating Frequency Max |
1.3GHz |
| No. of I/O's |
- |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
105°C |
| MPU Series |
- |
| MSL |
MSL 3 - 168 hours |
Other details

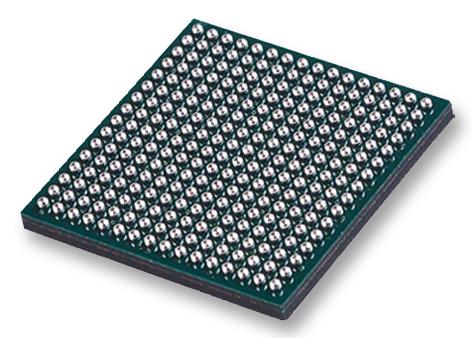

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
