Product Overview
S32G254AABK1VUCT is a S32G2 vehicle network processor that combines ASIL D safety, hardware security, high-performance real-time and application processing and network acceleration. This S32G2 supports the needs of new vehicle architectures: service-oriented gateways, domain controllers, zonal processors, safety processors and more. The S32G2 vehicle network processors are supported by a broad range of software enablement that is comprised of Reference Software, Standard Software and Premium Software, in addition to support from the S32 Design Studio IDE. Applications include central gateways and domain controllers connecting various networks and translating their protocols, safety processor for ADAS and autonomous driving, high-performance central compute nodes, FOTA host controlling secure software image downloads and their distribution to the ECUs in the network, secure key management, smart antennas.
- Triple Arm Cortex-M7 lockstep cores for real-time applications
- Low Latency Communication Engine (LLCE) for automotive networks acceleration
- Packet Forwarding Engine (PFE) for Ethernet networks acceleration
- Hardware Security Engine (HSE) for secure boot and accelerated security services
- Advanced functional safety hardware and software for ASIL D systems
- 8MB system RAM size
- 400MHz (Cortex-M7), 1000MHz (Cortex-A53) arm core speed
- Temperature (TA) range from -40°C to 105°C
- 525 FC-PBGA package
Product details
| Product Range |
S32G2 Family Microprocessors |
| Program Memory Size |
- |
| No. of Pins |
525Pins |
| Supply Voltage Max |
3.45V |
| Interfaces |
CAN, Ethernet, I2C, LIN, SPI, UART, USB |
| Data Bus Width |
32 bit, 64 bit |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q100 |
| MPU Family |
S32G2 |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of CPU Cores |
5Cores |
| IC Case / Package |
FCPBGA |
| Supply Voltage Min |
800mV |
| Operating Frequency Max |
1GHz |
| No. of I/O's |
- |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
105°C |
| MPU Series |
- |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
NXP |
| Part Number |
S32G254AABK1VUCT |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

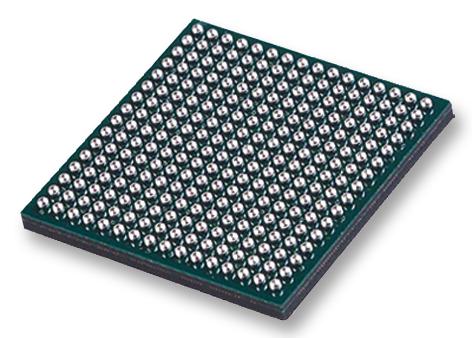

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
