Product Overview
MCIMX6Y2CVK08AB is an i.MX 6ULL single-core processor with Arm® Cortex®-A7 core. The i.MX 6ULL applications processor includes an integrated power management module that reduces the complexity of an external power supply and simplifies power sequencing. The processor provides various memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, raw and managed NAND flash, NOR flash, eMMC, Quad SPI and a wide range of other interfaces for connecting peripherals such as WLAN, Bluetooth®, GPS, displays and camera sensors. The i.MX 6ULL processor is specifically useful for applications such as telematics, audio playback, connected devices, IoT gateway, access control panels, human machine interfaces (HMI), portable medical and health care, IP phones, smart appliances, and eReaders.
- 2x Ethernet interfaces—2x 10/100Mbps Ethernet controllers
- Human-machine interface—each processor supports one digital parallel display interface
- Advanced power management: partial PMU integration
- Security block: TRNG, Crypto Engine (AES with DPA, TDES/SHA/RSA), secure boot
- 792MHz Arm Cortex-A7 frequency
- 0.5 pitch MAPBGA package
- Industrial temperature range from -40 to +105°C
Product details
| Product Range |
i.MX Family i.MX 6ULL Series Microprocessors |
| Program Memory Size |
- |
| No. of Pins |
272Pins |
| Supply Voltage Max |
1.5V |
| Interfaces |
CAN, Ethernet, I2C, SAI, SPI, UART, USB |
| Data Bus Width |
32 bit |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| MPU Family |
i.MX |
| No. of CPU Cores |
1Cores |
| IC Case / Package |
MAPBGA |
| Supply Voltage Min |
1.325V |
| Operating Frequency Max |
792MHz |
| No. of I/O's |
121I/O's |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
105°C |
| MPU Series |
i.MX 6ULL |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
NXP |
| Part Number |
MCIMX6Y2CVK08AB |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

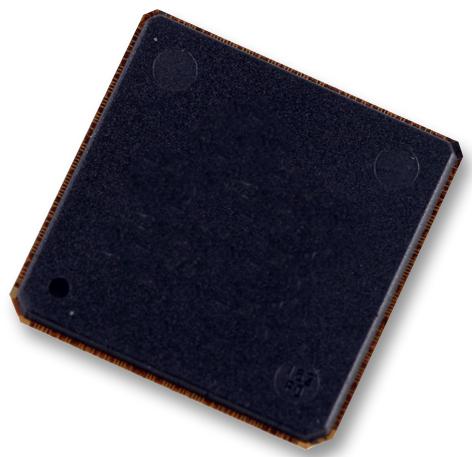

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
