Product Overview
S32M242LCABMKHST is an automotive 32-bit MCU/MPU. It is designed for 12V motor control applications, the S32M2 family, based on system-in-package (SiP) design, integrates high-voltage analogue functionalities (MOSFET gate pre-drivers, physical communication interfaces - LIN/CAN FD, and voltage regulators) with a robust embedded MCU Core (S32K Arm® Cortex®-M4/M7 series core), ensuring high-performance and functional safety compliance with ISO 26262 up to ASIL B. Key features include platform-based design of motor control edge nodes enabling faster time to market, advanced data analysis capabilities, inverter and motor diagnostic capabilities and advanced algorithms to minimize in-cabin noise. Through compatibility with the NXP S32 automotive platform, the S32M2 family enables seamless firmware over-the-air (FOTA) updates, software reuse and flexibility.
- 5V voltage output to supply power to an external component like hall sensor
- Integrated gate driver for up to 6 external power MOSFETs for BLDC or PMSM motor drive applications
- Integrated voltage regulator for operation from 12V car battery
- Motor control software examples including model-based design approach
- Extended flash memory for AUTOSAR®, OS, diagnostics, bootloader, over-the-air updates
- Real-time drivers (RTD) for AUTOSAR and non-AUTOSAR OS
- 64-pin LQFP-EP package
- Temperature range from -40°C to 125°C
Product details
| Product Range |
S32M2 Family S32M24x Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
256KB |
| IC Case / Package |
LQFP-EP |
| Interfaces |
CAN, LIN, LPI2C, LPSPI, LPUART |
| ADC Channels |
- |
| Supply Voltage Min |
5.5V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
S32M24x |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
ARM Cortex-M4F |
| Operating Frequency Max |
80MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
- |
| RAM Memory Size |
32KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
18V |
| Operating Temperature Max |
125°C |
| MCU Family |
S32M2 |
| Qualification |
AEC-Q100 |
Other details

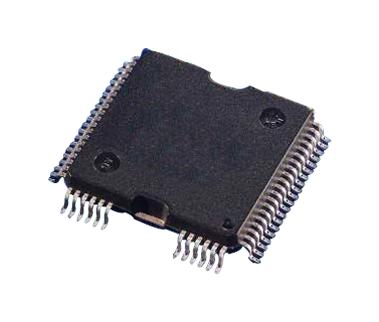

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
