Product Overview
S32K396NHT1MJBST is a S32K396 series microcontroller. It is a purpose-built device addressing the new electric vehicle (EV) needs with a compelling combination of performance, integration, networking, security and functional safety capabilities. It has enough compute power to support up to one six-phase or two three-phase motors controlled by over 200kHz control loops, while hosting AI/ML algorithms or other monitoring applications. It supports remote smart actuation applications using Time-Sensitive Networking (TSN) Ethernet for new zonal vehicle architectures. It also reduces system cost with ASIL D software resolver and analogue integration. Typical applications include automotive (battery management system (BMS), electric vehicle (EV) traction inverter, hybrid electric vehicle (HEV) applications).
- Cortex-M7 core at a higher frequency
- Advanced motor control coprocessors
- An extended analogue, including a high-resolution PWM
- Three Arm® Cortex®-M7 CPU cores
- One lockstep core pair and Two split-lock configurable cores
- 320MHz core frequency
- 6MB program flash memory
- 128kB data flash memory
- Ambient temperature range from -40 to 125°C
- 289-pin BGA package
Product details
| Product Range |
S32 Family S32K3xx Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
6MB |
| IC Case / Package |
MAPBGA |
| Interfaces |
Ethernet, FlexCAN, I2S, LIN, LPI2C, LPSPI, LPUART, QSPI |
| ADC Channels |
120Channels |
| Supply Voltage Min |
2.97V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
S32K3xx |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
ARM Cortex-M7F |
| Operating Frequency Max |
320MHz |
| No. of Pins |
289Pins |
| No. of I/O's |
209I/O's |
| RAM Memory Size |
800KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
125°C |
| MCU Family |
S32 |
| Qualification |
AEC-Q100 |
Other details

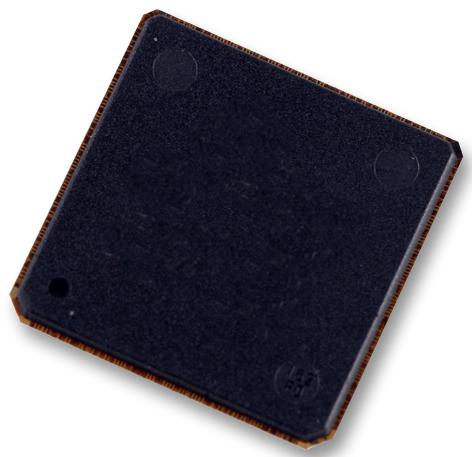

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
