Product Overview
S32K310NHT0MLFST is a S32K3 32-bit microcontroller (MCU). This S32K3 family offers scalability in number of cores, memory and peripherals, ensuring high-performance. It provides a comprehensive end-to-end solution for development and production. This S32K3 MCU features a hardware security engine (HSE) with NXP firmware, enables firmware over-the-air (FOTA) updates and includes ISO 26262 compliant Real-Time Drivers (RTD) suitable for both AUTOSAR® and non-AUTOSAR applications. The S32K3xx series offers a broad range of memory, peripherals and performance options. Devices in this series share common peripherals and pin-out, allowing developers to migrate easily within a chip series or among other chip series to take advantage of more memory or feature integration.
- Voltage range from 2.97V to 5.5V
- Up to 32-channel DMA with up to 128 request sources using DMAMUX
- 512kB program flash memory
- 64kB data flash memory
- 112kB total RAM (incl. 96kB TCM)
- 120MHz frequency
- Ambient temperature range from -40°C to 125°C

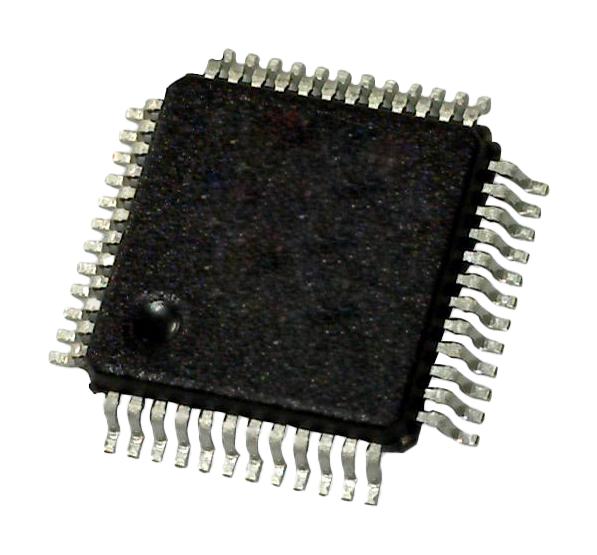

- 48-pin LQFP package
Product details
| Product Range |
S32 Family S32K3xx Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
512KB |
| IC Case / Package |
LQFP |
| Interfaces |
FlexCAN, I2S, LIN, LPI2C, LPSPI, LPUART |
| ADC Channels |
48Channels |
| Supply Voltage Min |
2.97V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
S32K3xx |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
ARM Cortex-M7F |
| Operating Frequency Max |
120MHz |
| No. of Pins |
48Pins |
| No. of I/O's |
38I/O's |
| RAM Memory Size |
112KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
125°C |
| MCU Family |
S32 |
| Qualification |
AEC-Q100 |
