Product Overview
RW612ET/A2IK is a RW612 highly integrated, low-power tri-radio wireless MCU with an integrated MCU and Wi-Fi 6 + Bluetooth Low Energy (LE) / 802.15.4 radios designed for a broad array of applications. Applications include connected smart home and appliances, enterprise and industrial automation and smart energy. The RW612 MCU subsystem includes a 260MHz Arm® Cortex®-M33 core with TrustZone™-M, 1.2MB onchip SRAM. The RW612 also includes a Quad SPI interface with high bandwidth, and an on-the-fly decryption engine for securely accessing off-chip XIP flash and PSRAM. The advanced design of the RW612 delivers tight integration, low power, and highly secure operation in a space- and cost-efficient wireless MCU requiring only a single 3.3V power supply. Applications include smart home, industrial, smart devices, smart appliances, smart accessories, gateways.
- 260MHz Arm Cortex-M33 with TrustZone-M
- CoreMark® score: 1,033, 3.97 CoreMark/MHz
- 1.2MB integrated SRAM
- FlexSPI external flash interface supports up to 128MB
- FlexSPI external PSRAM interface for system memory expansion supports up to 128MB
- Combined external memory interfaces support up to 128MB in total (flash + PSRAM)
- Industrial temperature range from -40°C to 85°C

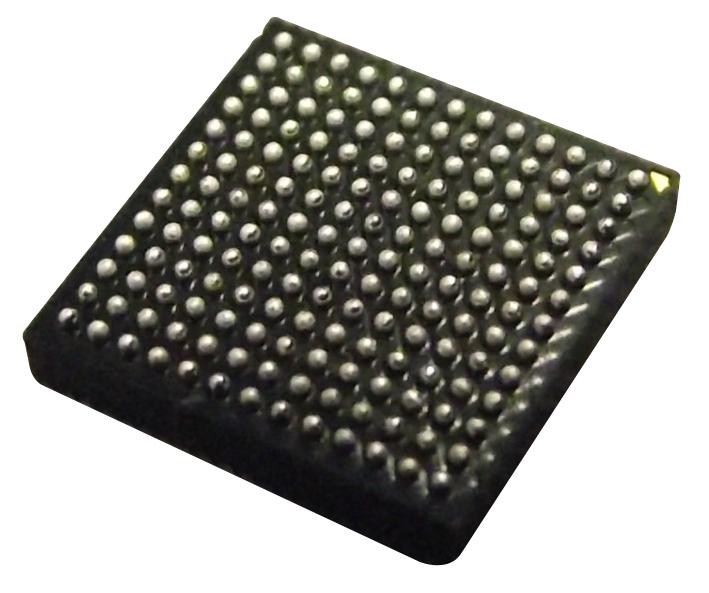

- TFBGA145 package
Product details
| Product Range |
RW612 Family RW612x Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
- |
| IC Case / Package |
TFBGA |
| Interfaces |
I2C, I2S, SPI, UART |
| ADC Channels |
- |
| Supply Voltage Min |
2.97V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
RW612x |
| MSL |
MSL 3 - 168 hours |
| Device Core |
ARM Cortex-M33F |
| Operating Frequency Max |
260MHz |
| No. of Pins |
145Pins |
| No. of I/O's |
64I/O's |
| RAM Memory Size |
1.2MB |
| ADC Resolution |
16Bit |
| Supply Voltage Max |
3.63V |
| Operating Temperature Max |
85°C |
| MCU Family |
RW612 |
| Qualification |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
NXP |
| Part Number |
RW612ET/A2IK |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
