Product Overview
MKE13Z512VLH9 is a KE1xZ MCU based on the Arm®Cortex®-M0+ core, running up to 96MHz. The robust TSI module with up to 50 channels provides a high level of stability and accuracy to any HMI system. The 1-Msps ADC and FlexTimer modules provide an ideal solution for BLDC motor-control systems. The MSCAN IP is ideal for CAN node control and auto after car market applications. This device is fully supported by NXP's MCUXpresso Software and Tools, a comprehensive and cohesive set of free software development tools for Kinetis, LPC and i.MX RT microcontrollers. It features up to 96 MHz Cortex-M0+ core supporting a broad range of processing bandwidth requirements while maintaining excellent cost-effectiveness, easy to use packages and a wide range of memory densities.
- Enhanced robust IOs make sure the high performance under noisy environment
- Robust TSI supports mutual cap mode and self-cap mode, providing flexibility for upto 72 touch keys
- Analog comparator for fast response to external analogue change
- FlexIO provides flexibility for serial communication interface implementation
- Supported by MCUXpresso SDK, IDE and Config Tools
- Voltage range: 2.7 to 5.5V
- 128-bit unique identification (ID) number, ADC self-calibration feature
- 512kB flash, 96kB SRAM
- 64 LQFP package
- Ambient temperature range from –40 to 105°C
Product details
| Product Range |
Kinetis E Family KE1xZ Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
512KB |
| IC Case / Package |
LQFP |
| Interfaces |
LPI2C, LPSPI, LPUART, SCI |
| ADC Channels |
24Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
KE1xZ |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
ARM Cortex-M0+ |
| Operating Frequency Max |
96MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
58I/O's |
| RAM Memory Size |
96KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
105°C |
| MCU Family |
Kinetis E |
| Qualification |
- |
Other details
| Brand |
NXP |
| Part Number |
MKE13Z512VLH9 |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |

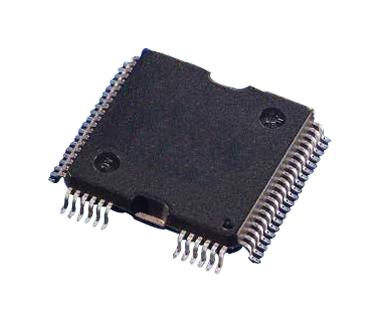

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
