Product Overview
MIMXRT1175AVM8A is an i.MX RT1170 crossover processor for automotive products. The i.MX RT1170 integrates advanced power management module with DCDC and LDO regulators that reduce complexity of external power supply and simplify power sequencing. The i.MX RT1170 also has rich audio and video features, including MIPI CSI/DSI, LCD display, graphic accelerator, camera interface, SPDIF, and I2S audio interface. The i.MX RT1170 family is supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to enable rapid development. The i.MX RT1170 is specifically useful for applications such as Industrial Human Machine Interfaces (HMI), motor control, home appliance, high-end audio appliance, low-end instrument cluster, Point-of-Sale (PoS).
- Secure always-on RAM (4kB)
- Secure and trusted access control
- 800MHz M7 core
- 2MB without ECC or 1.75MB with ECC SRAM
- 2 x Gb ENET with AVB and TSN, 2D GPU, MIPI® CSI/DSI
- 289MAPBGA package
- Automotive temperature range from -40 to + 125°C
Product details
| Product Range |
i.MX RT Family i.MX RT1170 Series Microprocessors |
| Device Core |
Arm Cortex-M4F, Arm Cortex-M7F |
| IC Case / Package |
MAPBGA |
| Supply Voltage Min |
3V |
| Operating Frequency Max |
800MHz |
| RAM Memory Size |
2MB |
| ADC Channels |
20Channels |
| ADC Resolution |
12Bit |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| MPU Family |
i.MX RT |
| MCU Series |
i.MX RT1170 |
| No. of CPU Cores |
1Cores |
| Program Memory Size |
- |
| No. of Pins |
289Pins |
| Supply Voltage Max |
3.6V |
| Interfaces |
CAN, Ethernet, LPI2C, LPUART, SAI, SPI, USB |
| No. of I/O's |
- |
| Data Bus Width |
32 bit |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
| MPU Series |
i.MX RT1060 |
| MCU Family |
i.MX RT |
| SVHC |
No SVHC (25-Jun-2025) |
Other details

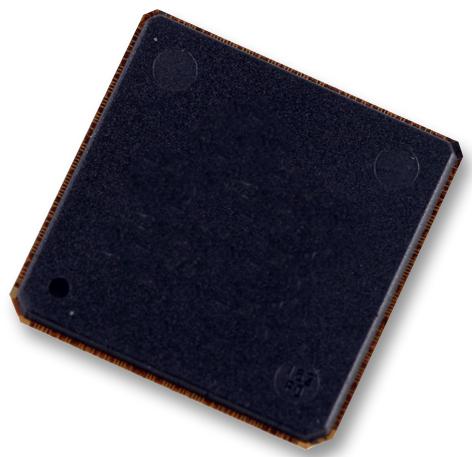

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
