Product Overview
MIMXRT106LCVL5B is an i.MX RT1060 crossover processor for industrial products. It features advanced implementation of the Arm Cortex®-M7 core, which operates at speeds up to 528MHz to provide high CPU performance and best real-time response. The i.MX RT1060 integrates advanced power management module with DCDC and LDO that reduces complexity of external power supply and simplify power sequencing. The i.MX RT1060 has rich audio and video features, including LCD display, basic 2D graphics, camera interface, SPDIF, and I2S audio interface. The i.MX RT1060 has analogue interfaces, such as ADC, ACMP, and TSC. The i.MX RT1060 is specifically useful for applications such as industrial human machine interfaces (HMI), motor control, home appliance.
- Supports single Arm Cortex-M7 core with: 32kB L1 instruction cache, 32kB L1 data cache
- Full featured Floating Point Unit (FPU) with support of the VFPv5 architecture
- Support the Armv7-M Thumb instruction set
- Integrated MPU, up to 16 individual protection regions
- Tightly coupled GPIOs, operating at the same frequency as Arm Core
- Up to 512kB I-TCM and D-TCM in total
- Cortex M7 CoreSight™ components integration for debug

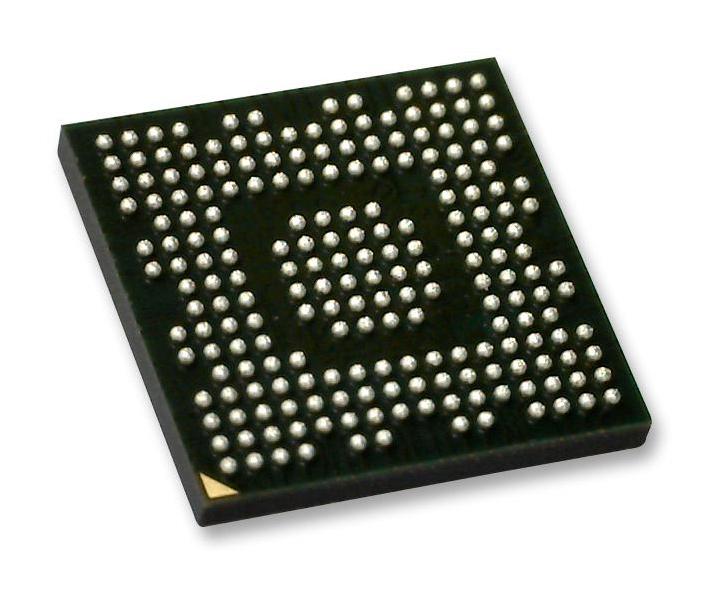

- 196-pin MAPBGA package
- Industrial temperature range from -40 to +105°C
Product details
| Product Range |
i.MX RT Family i.MX RT1060 Series Microprocessors |
| Device Core |
ARM Cortex-M7F |
| IC Case / Package |
MAPBGA |
| Supply Voltage Min |
925mV |
| Operating Frequency Max |
528MHz |
| RAM Memory Size |
1MB |
| ADC Channels |
20Channels |
| ADC Resolution |
12Bit |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| MPU Family |
i.MX RT |
| MCU Series |
i.MX RT1060 |
| No. of CPU Cores |
1Cores |
| Program Memory Size |
- |
| No. of Pins |
196Pins |
| Supply Voltage Max |
1.26V |
| Interfaces |
Ethernet, FlexCAN, LPI2C, LPSPI, LPUART, SAI, USB |
| No. of I/O's |
127I/O's |
| Data Bus Width |
32 bit |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
105°C |
| MPU Series |
i.MX RT1060 |
| MCU Family |
i.MX RT |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
NXP |
| Part Number |
MIMXRT106LCVL5B |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
