Product Overview
LPC55S06JHI48E is an ARM Cortex-M33 based microcontroller for embedded applications. The ARM Cortex-M33 provides a security foundation, offering isolation to protect valuable IP and data with TrustZone® technology. It simplifies the design and software development of digital signal control systems with the integrated digital signal processing (DSP) instructions. To support security requirements, this also offers support for secure boot, HASH, AES, RSA, UUID, DICE, dynamic encrypt and decrypt, debug authentication, and TBSA compliance.
- Operating from internal DC-DC converter
- Single power supply 1.8V to 3.6V
- JTAG boundary sca Supported
- Running at frequency of up to 96MHz
- Arm TrustZone®, floating point unit (FPU) and memory protection unit (MPU)
- Cortex-M33 built-in nested vectored interrupt controller (NVIC)
- Non-maskable interrupt (NMI) input with a selection of sources
- 256kB flash memory, 96kB total SRAM

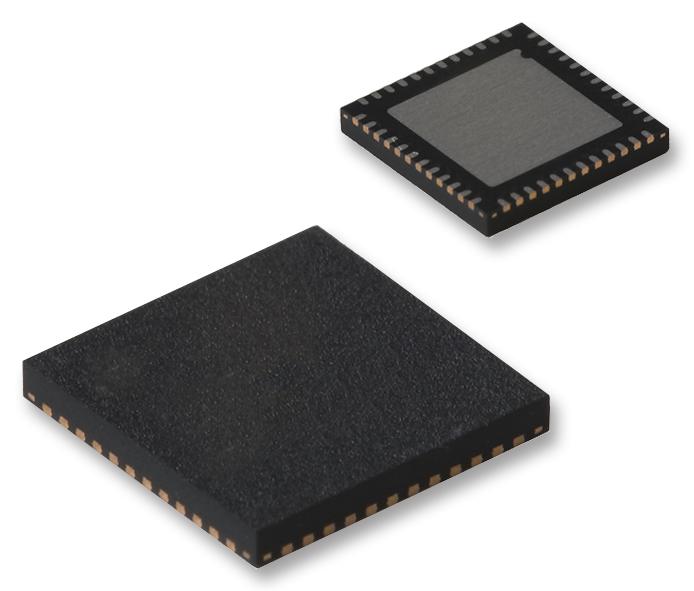

- HVQFN48 package
Product details
| Product Range |
LPC Family LPC5500 Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
256KB |
| IC Case / Package |
HVQFN |
| Interfaces |
CAN, I2C, I2S, SPI, UART, USART |
| ADC Channels |
7Channels |
| Supply Voltage Min |
1.8V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
LPC5500 |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
ARM Cortex-M33F |
| Operating Frequency Max |
96MHz |
| No. of Pins |
48Pins |
| No. of I/O's |
30I/O's |
| RAM Memory Size |
96KB |
| ADC Resolution |
16Bit |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
105°C |
| MCU Family |
LPC |
| Qualification |
- |
Other details
| Brand |
NXP |
| Part Number |
LPC55S06JHI48E |
| Quantity |
Each |
| Technical Data Sheet (59.00B) EN |
View or download |
