Product Overview
FS32K148HAT0MMHT is a S32K1 automotive 32bit microcontroller. It offers Arm® Cortex®-M-based MCU, along with a basic cryptographic security engine. The S32K1 family offers scalability in memory and peripherals, ensuring high-performance and functional safety compliant with ISO 26262 up to ASIL B. It is accompanied by a complete production-grade software ecosystem. The S32K1 MCU features ultra-low-power operating modes and are supported by a comprehensive suite of production grade tools and software including an automotive-grade Software Development Kit (SDK) suitable for both AUTOSAR® and non-AUTOSAR applications.
- Scalable low power run and stop modes, fast wake-up, clock and power gating
- Functional safety ISO 26262 compliant, up to ASIL B
- Safety documentation and SafeAssure community support
- CSEc security engine - AES-128, secure boot and key storage
- Arm® Cortex™-M4F core
- 80MHz (RUN mode) or 112MHz (HSRUN mode) frequency
- 2.7 - 5.5V single supply voltage
- 2MB flash, 256kB system RAM (including FlexRAM and MTB)
- Temperature range from –40°C to 125°C

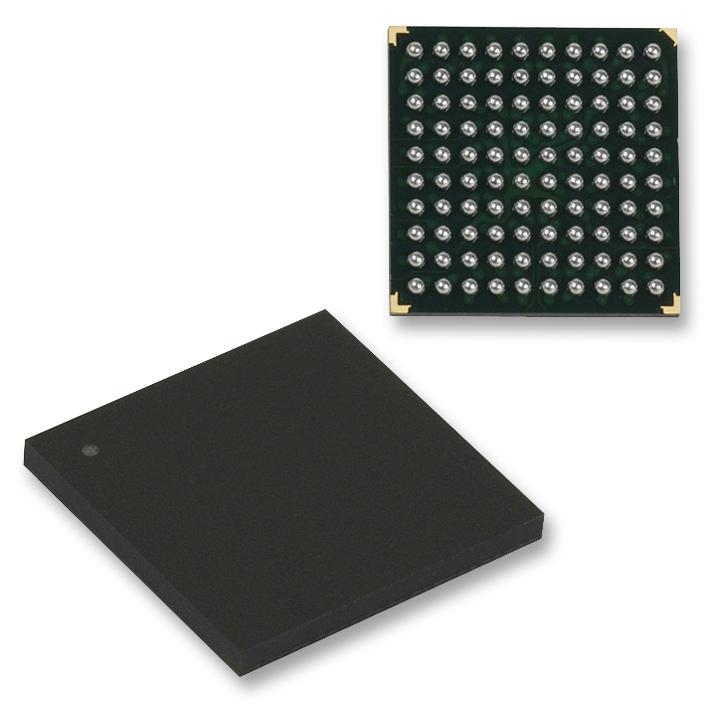

- 100-pin BGA package
Product details
| Product Range |
S32 Family S32K1xx Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
2MB |
| IC Case / Package |
MAPBGA |
| Interfaces |
FlexCAN, LPI2C, LPSPI, LPUART |
| ADC Channels |
64Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
S32K1xx |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
ARM Cortex-M4F |
| Operating Frequency Max |
80MHz |
| No. of Pins |
100Pins |
| No. of I/O's |
156I/O's |
| RAM Memory Size |
256KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
125°C |
| MCU Family |
S32 |
| Qualification |
AEC-Q100 |
Other details
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
