Product Overview
S912ZVL12AMLF is a S12 MagniV® mixed-signal MCU. It offers a low-cost, highly integrated solution that enables the design of the smallest possible automotive CAN-termination nodes, while the family concept gives users scalability for platform design. The S12ZVC integrates a sophisticated S12Z core together with a 12V to 5V voltage regulator and a CAN physical layer for automotive and industrial applications such as sensors, actuators, switch panels or other user interfaces.
- Enhanced S12Z core at 32MHz bus speed
- Vreg for 3.5 to 20-volt operating range, scalable in supply for on- and off-chip systems
- CAN physical layer
- 12-bit resolution ADC, 16ns resolution PWM and timer
- 1MHz internal RC oscillator with +/-1.3% accuracy over rated temperature range
- Two analogue comparators (ACMP) with rail-to-rail inputs
- One 8-bit 5V digital-to-analogue converter (DAC)
- 128kB flash memory
- Temperature range from -40°C to 125°C

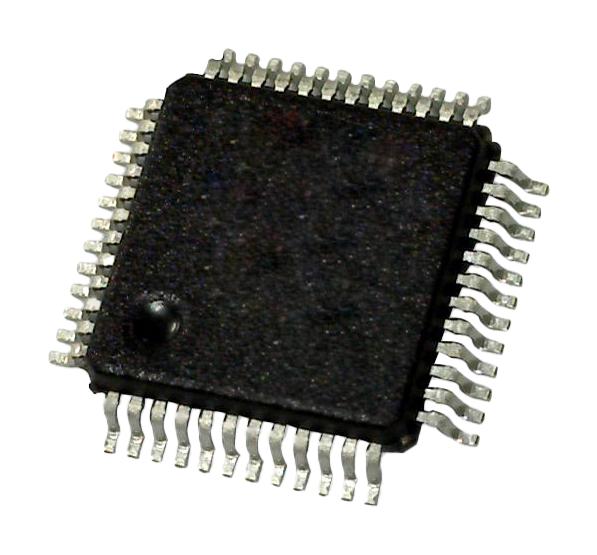

- 48LQFP package
Product details
| Product Range |
S12 MagniV Family S12ZVL Series Microcontrollers |
| Data Bus Width |
16 bit |
| Program Memory Size |
128KB |
| IC Case / Package |
LQFP |
| Interfaces |
CAN, I2C, LIN, SCI, SPI |
| ADC Channels |
10Channels |
| Supply Voltage Min |
5.5V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Family |
S12 MagniV |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
S12Z |
| Operating Frequency Max |
32MHz |
| No. of Pins |
48Pins |
| No. of I/O's |
34I/O's |
| RAM Memory Size |
8KB |
| ADC Resolution |
10Bit |
| Supply Voltage Max |
18V |
| Operating Temperature Max |
125°C |
| MCU Series |
S12ZVL |
| Qualification |
- |
Other details
| Brand |
NXP |
| Part Number |
S912ZVL12AMLF |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
