Product Overview
C9S12ZVL32L0MLC is a S12ZVL family, S12 MagniV mixed-signal microcontroller. It offers a low-cost, highly integrated solution for space-constrained automotive LIN nodes. The S12ZVL integrates a sophisticated S12Z core with a 12V to 5V voltage regulator and a LIN physical layer transceiver for applications such as sensor interfaces, actuators, switch panels or ambient lighting.
- S12Z core - 32MHz bus speed
- Analog comparator and DAC
- 12V Vreg to supply device + ext comp- 70mA total (170mA with ext. ballast)
- LIN physical layer
- On-chip RC-oscillator trimmed to 1.3% accuracy, no ext xtal required on LIN
- 16 bit data bus width
- 32kB program memory size
- 1kB RAM memory size
- 5.5V to 18V supply voltage

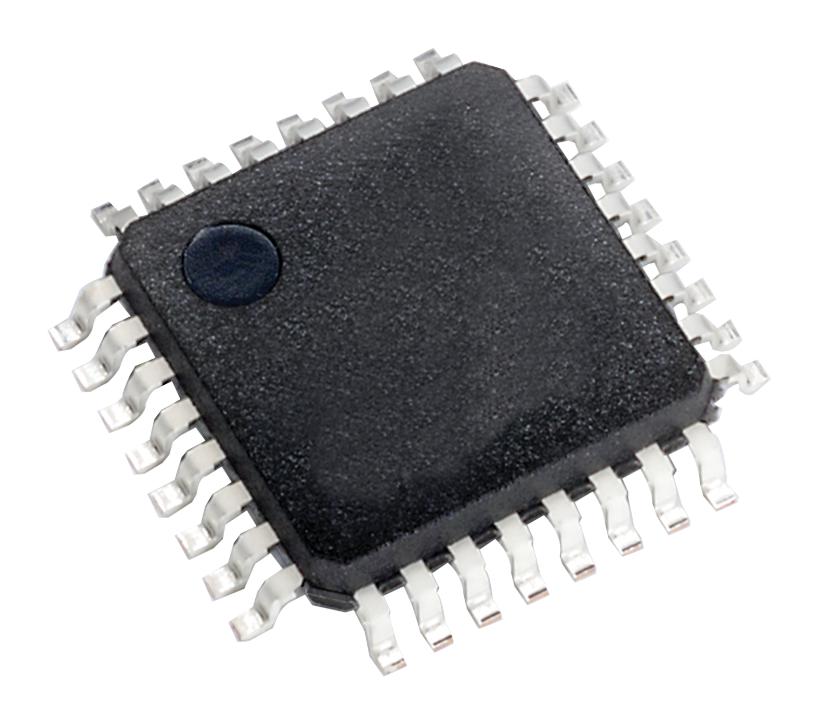

- 32-pin LQFP package, -40°C to 125°C operating temperature
Product details
| Product Range |
S12 MagniV Family S12ZVL Series Microcontrollers |
| Data Bus Width |
16 bit |
| Program Memory Size |
32KB |
| IC Case / Package |
LQFP |
| Interfaces |
I2C, LIN, SCI, SPI |
| ADC Channels |
6Channels |
| Supply Voltage Min |
5.5V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Family |
S12 MagniV |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
S12Z |
| Operating Frequency Max |
32MHz |
| No. of Pins |
32Pins |
| No. of I/O's |
19I/O's |
| RAM Memory Size |
1KB |
| ADC Resolution |
10Bit |
| Supply Voltage Max |
18V |
| Operating Temperature Max |
125°C |
| MCU Series |
S12ZVL |
| Qualification |
- |
Other details
| Brand |
NXP |
| Part Number |
C9S12ZVL32L0MLC |
| Quantity |
Each |
| Technical Data Sheet (5.15MB) EN |
View or download |
