Product Overview
C912ZVML31L0WKH is a S12ZVM family, 16-bit S12 MagniV® S12ZVM mixed-signal microcontroller. It offers the smallest, efficient, and scalable 3-phase motor control solution for Brushless Direct Current (BLDC) motor, Permanent Magnet Synchronous Motor (PMSM), or Switched Reluctance Motor (SRM) control applications. The S12ZVM MCU integrates a 12V to 5V voltage regulator, LIN physical layer or CAN physical layer, and a Gate Driver Unit (GDU) to control six power MOSFETs.
- Enhanced S12Z core at 50MHz bus speed
- 6-ch PMF 15bit PWM for motor control with dead time, fault management
- Dual 12-bit analogue to digital converter (ADC)
- Programmable trigger unit (PTU) to synchronize ADC conversions
- 3.5 to 20-volt operating range
- Gate drive unit (GDU) for six power MOSFETs
- Up to 2 op-amp for current measurement/sensing
- 32kB program memory size, 4kB RAM memory size
- 64-pin LQFP-EP package
- Operating temperature range from -40°C to +150°C
Product details
| Product Range |
S12 MagniV Family S12ZVM Series Microcontrollers |
| Data Bus Width |
16 bit |
| Program Memory Size |
32KB |
| IC Case / Package |
LQFP-EP |
| Interfaces |
LIN, SCI, SPI |
| ADC Channels |
9Channels |
| Supply Voltage Min |
5.5V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Family |
S12 MagniV |
| SVHC |
No SVHC (25-Jun-2025) |
| Device Core |
S12Z |
| Operating Frequency Max |
50MHz |
| No. of Pins |
64Pins |
| No. of I/O's |
- |
| RAM Memory Size |
4KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
18V |
| Operating Temperature Max |
150°C |
| MCU Series |
S12ZVM |
| Qualification |
- |
Other details
| Brand |
NXP |
| Part Number |
C912ZVML31L0WKH |
| Quantity |
Each |
| Technical Data Sheet (5.15MB) EN |
View or download |

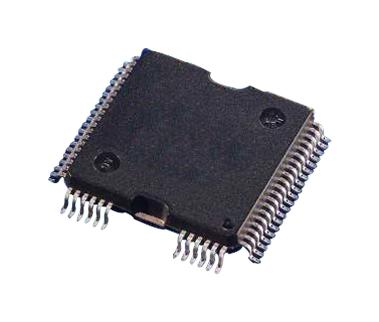

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
