Product Overview

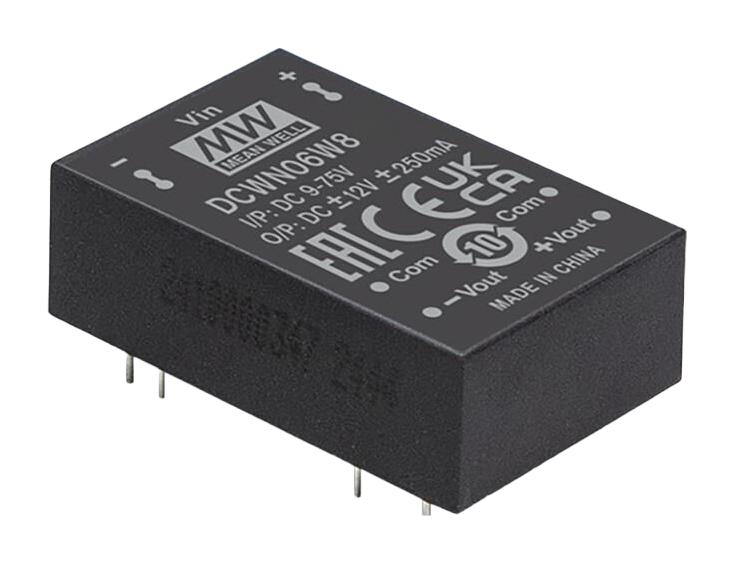

MEAN WELL DCWN06W8-12 Isolated Through Hole DC/DC Converter, ITE & Industrial, DIP, 8:1, 6 W, 2 Output, 12 V
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
8:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
250mA |
| Output Current - Output 2 |
-250mA |
| Isolation Voltage |
3kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.2mm |
| Input Voltage DC Min |
9V |
| Product Range |
DCWN06W8 Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
6W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
-12V |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
- |
| Width |
20.3mm |
| Depth |
31.8mm |
| Input Voltage DC Max |
75V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MEAN WELL |
| Part Number |
DCWN06W8-12 |
| Quantity |
Each |
