Product Overview

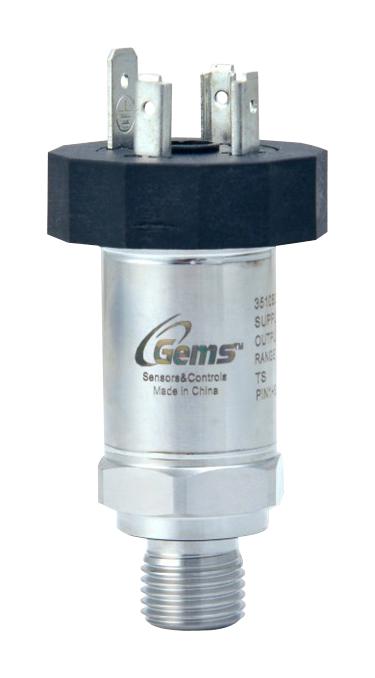

3510B0006G01G000 is a 3510 series compact low pressure OEM pressure transmitter. The 3510 series deliver consistent performance over millions of cycles, with long-term drift under 0.2% FS per year. Its Micro-Machined Silicon (MMS) sensing technology and rugged design maintain accuracy under thermal, mechanical, and dynamic stress—ideal for critical systems like pumps, compressors, and medical devices. It is ideal for HVAC&R systems, medical devices, and fluid-handling skids, the 3510 meets varied media needs without custom engineering. Applications include pump and compressor, hydrogen fuel cell, Off-Highway (OHV), fluid power systems process and water systems.
- Long-term stability in OEM systems, flexible outputs and connections
- Compact with wide media compatibility, robust design and durability
- Best-in-class price-to-performance ratio for OEM pressure applications
- Compact, lightweight design ideal for tight installation spaces
- All 316L stainless steel wetted parts ensure broad media compatibility
- ±0.5% FS typical accuracy with <0.2% FS/YR long-term drift
- IP65/IP67 protection ratings and full compliance to IEC shock/vibration standards
- Fast 5ms response time and high fatigue life for dynamic pressure systems
- 4-20mA output, -40°C to +100°C operating temperature range
- 6bar pressure range, G 1/4 A external pressure port
Product details
| Pressure Type |
Gauge |
| Operating Pressure Min |
0bar |
| Pressure Port Size |
G1/4A |
| Supply Voltage Min |
10VDC |
| Media Type |
Gas, Liquid |
| Sensor Output Type |
Analogue - 4mA to 20mA |
| Operating Temperature Min |
-40°C |
| Product Range |
3510 Series |
| Pressure Port Type |
Threaded |
| Operating Pressure Max |
6bar |
| Transducer Connection / Termination |
DIN 43650A Connector |
| Supply Voltage Max |
30VDC |
| Output Interface |
- |
| Housing Material |
- |
| Operating Temperature Max |
100°C |
Other details
| Brand |
GEMS SENSORS |
| Part Number |
3510B0006G01G000 |
| Quantity |
Each |
| Technical Data Sheet (137.00B) EN |
View or download |
