Product Overview

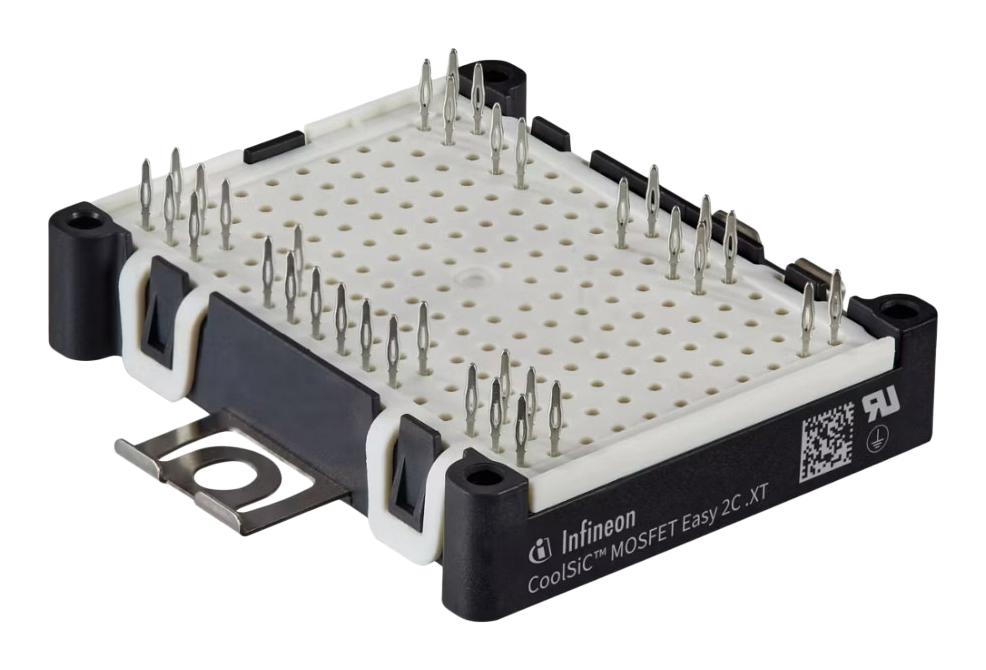

INFINEON F48MXTR12C2M2QH11BPSA1 Silicon Carbide MOSFET, FourPack, Quad N Channel, 100 A, 1.2 kV, 8300 µohm, Module
Product details
| MOSFET Module Configuration |
FourPack |
| Continuous Drain Current Id |
100A |
| Drain Source On State Resistance |
8300µohm |
| No. of Pins |
34Pins |
| Gate Source Threshold Voltage Max |
5.15V |
| Operating Temperature Max |
175°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Channel Type |
Quad N Channel |
| Drain Source Voltage Vds |
1.2kV |
| Transistor Case Style |
Module |
| Rds(on) Test Voltage |
18V |
| Power Dissipation |
- |
| Product Range |
EasyPACK Series |
Other details
| Brand |
INFINEON |
| Part Number |
F48MXTR12C2M2QH11BPSA1 |
| Quantity |
Each |
| Technical Data Sheet (104.00B) EN |
View or download |
