Product Overview

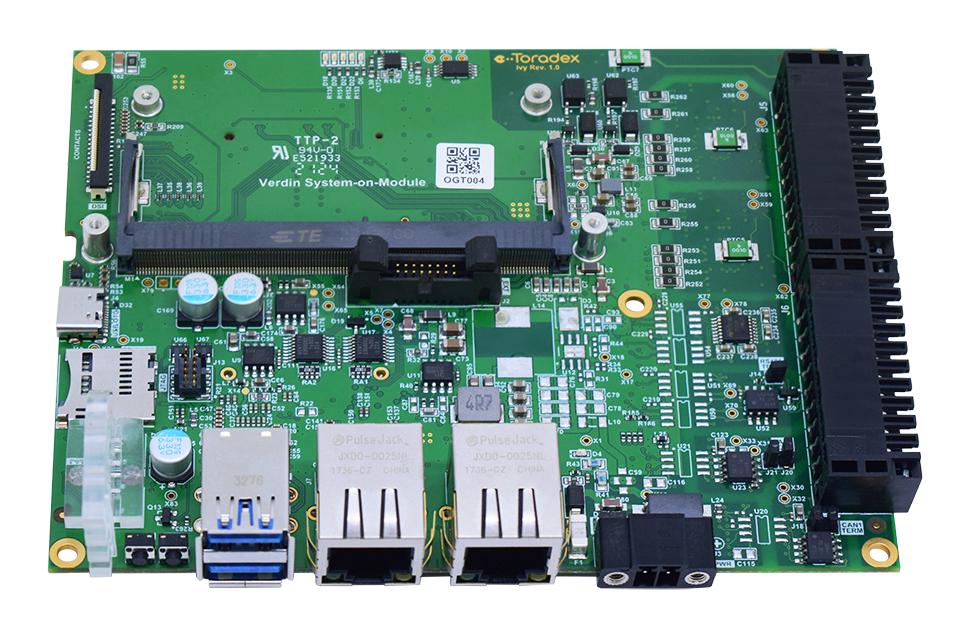

01781000 is an Ivy Plus carrier board V1.0A (Preliminary Version) for the Verdin family of System-on-Modules (SoMs) / Computer-on-modules (CoMs) designed to be use in a industrial environment.
- Power input requirements: Ivy Plus- DC 8 to 72V, 2A and (2x digital inputs, 5 to 32V input voltage)
- 4x SOM ADC input to measure major power rails (Vin, 5V, 3V3, 1V8)
- 3x GPIO controlled tri colour status LEDs (D9 green is always on)
- 2x CAN-FD transceiver, with 120 ohm split termination (Ivy Plus - isolated CAN)
- 1x RS-232 interface, with flow control ( Ivy plus - isolated RS-232)
- 1x RS-485 interface, with 120 ohm termination (isolated RS-485)
- 1x Gigabit Ethernet connector to SOM, 1x Gigabit Ethernet RGMII (DP83867), 2x USB 3.0 Type A CONN
- RTC backup battery holder for CR1216/1220/1225
- MIPI DSI connector for Toradex Capacitive Touch Display
- Size of the board is 130mm x 105mm
Product details
| Silicon Manufacturer |
- |
| Core Sub-Architecture |
- |
| Silicon Family Name |
- |
| Kit Contents |
Ivy Plus Carrier Board V1.0A |
| SVHC |
No SVHC (25-Jun-2025) |
| Core Architecture |
- |
| Silicon Core Number |
- |
| For Use With |
Verdin Family System-on-Modules (SoMs) / Computer-on-Modules (CoMs) |
| Product Range |
- |
Other details
| Brand |
TORADEX |
| Part Number |
01781000 |
| Quantity |
Each |
| Technical Data Sheet (67.00B) EN |
View or download |
