Description
Product Overview

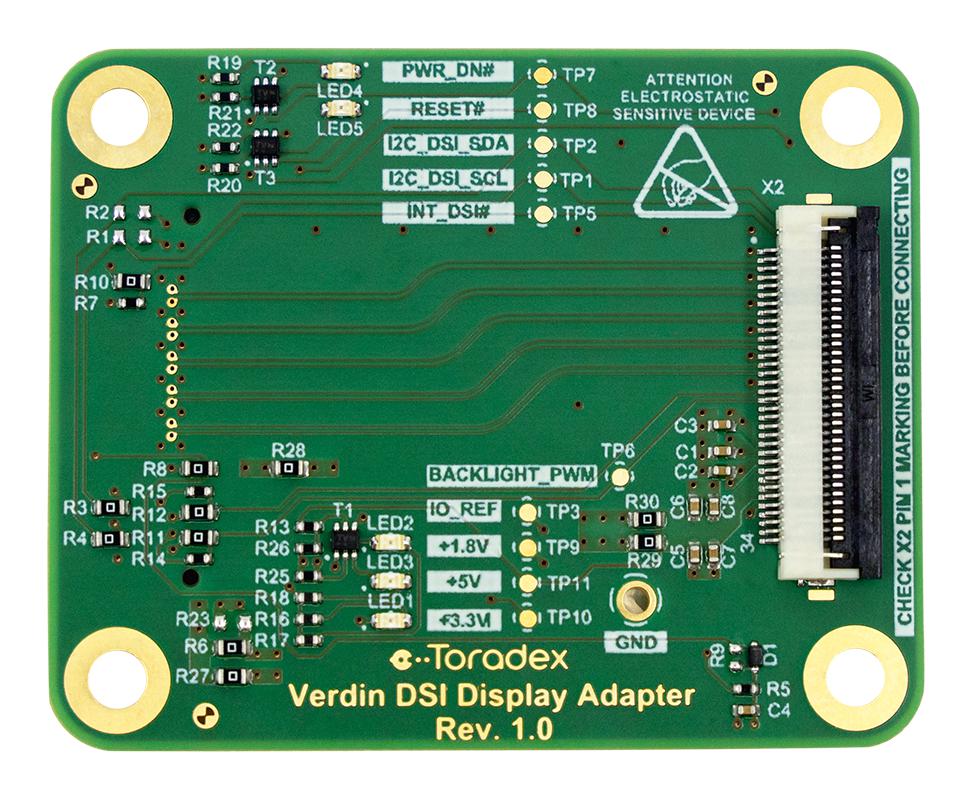

01741000 is a DSI display adapter board which provides an easy-to-use solution for connecting and driving MIPI® DSI displays through the board-to-board DSI connector of compatible carrier boards (The Verdin DSI display adapter is an add-on board for the Verdin development board and the Dahlia carrier board which pass through MIPI DSI interface to FPC/FFC connector). The DSI display adapter implements Toradex’s simple DSI connector that directly connects to compatible displays and provides the user with a quad-Lane DSI interface, an I2C bus for touch controller and various other ICs, a PWM signal for backlight brightness control, and various power rails (1.8V, 3.3V, 5V) for powering the display and associated ICs (e.g. touch controller, backlight driver, converter ICs, etc.) in a power envelope of up to 10W. The product is compatible with both 1.8V and 3.3V IO voltage levels.
- Featuring a single FFC/FPC connector
- Compatible with the Verdin development board and the Dahlia
- Connects directly to the MIPI® DSI connector of compatible carrier boards
- No external power supply required
- Easily mounted to compatible carrier boards by means of 4 screws
- 34-way FPC/FFC connector compatible with the Toradex MIPI DSI display
- Verdin DSI display adapter board features 11 test points to provide access to important signals
Contents
DSI display adapter, FFC cables.
Product details
| Silicon Manufacturer | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | DSI Display Adapter V1.0A |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | - |
| Silicon Core Number | - |
| For Use With | Verdin Development Boards |
| Product Range | - |
Other details
| Brand | TORADEX |
| Part Number | 01741000 |
| Quantity | Each |
| Technical Data Sheet (72.00B) EN | View or download |
