Product Overview

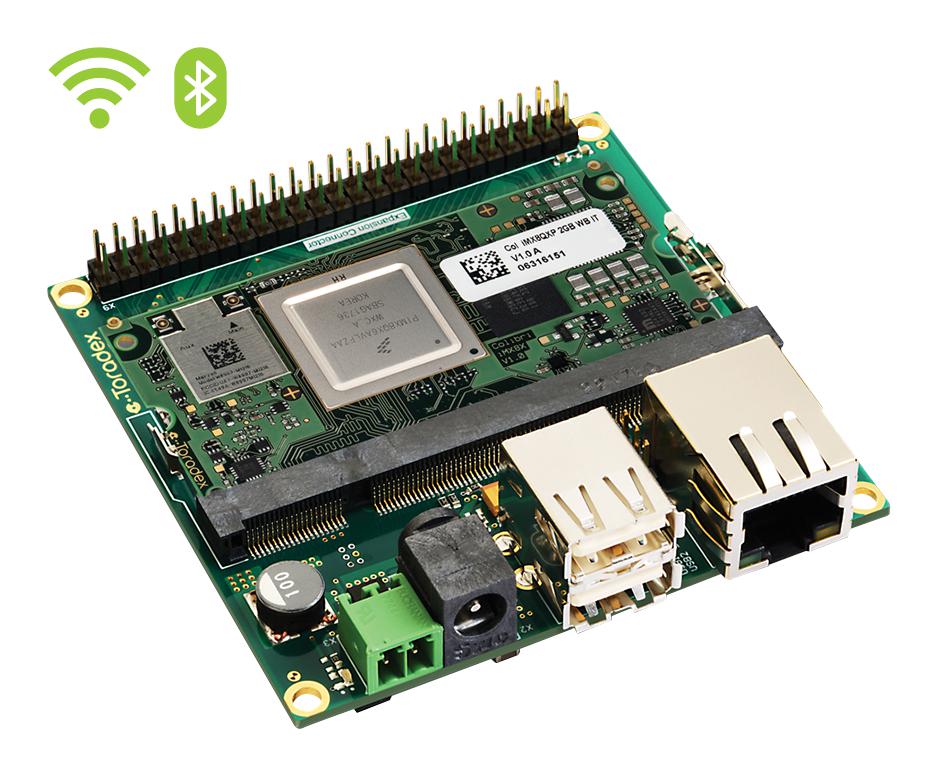

01371201 is a Viola carrier board V1.2B. This is a compact, cost-effective carrier board designed for the Toradex Colibri family of computer-on-modules. It is optimized for end-product integration in embedded and industrial applications requiring robust connectivity in a small form factor.
- Ethernet connectivity: 10/100Mbit fast Ethernet RJ45
- USB ports: 2× USB 2.0 Host (Type A, dual stacked), 1× micro USB Client (shared with one host port)
- 18-bpp RGB port uses 40-way Unified Interface Display connector for LCD panel interfacing
- Offers 4-wire resistive touch via the same FFC, X7 connector supports the EDT Unified TFT interface
- Micro SD card connector (X8)
- Battery connector (BAT1)
- Terminal block power supply connector (X3)
- Indication (LED2 3.3V) houses on the top side of the PCB for power indications
- Board size is 74mm × 74mm
- Operating temperature range from -40°C to +85°C
Product details
| Silicon Manufacturer |
- |
| Core Sub-Architecture |
- |
| Silicon Family Name |
- |
| Kit Contents |
Viola Carrier Board V1.2B |
| SVHC |
No SVHC (25-Jun-2025) |
| Core Architecture |
- |
| Silicon Core Number |
- |
| For Use With |
Colibri Family Computer-on-Modules |
| Product Range |
- |
Other details
| Brand |
TORADEX |
| Part Number |
01371201 |
| Quantity |
Each |
| Technical Data Sheet (77.00B) EN |
View or download |
