Description
Product Overview

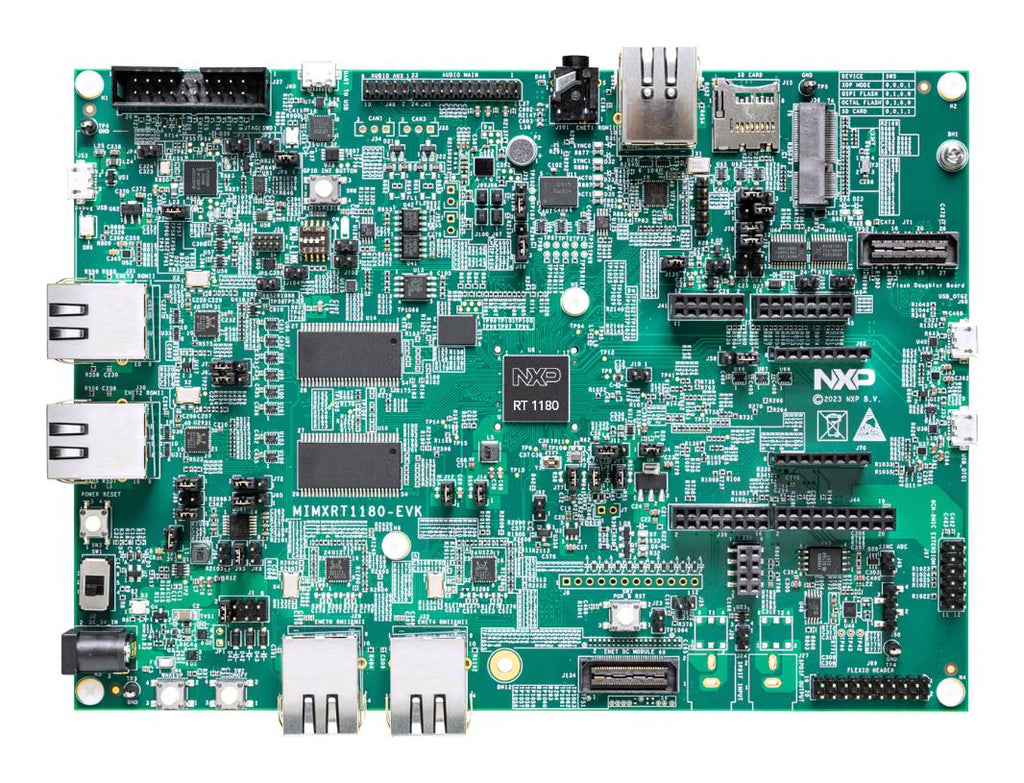

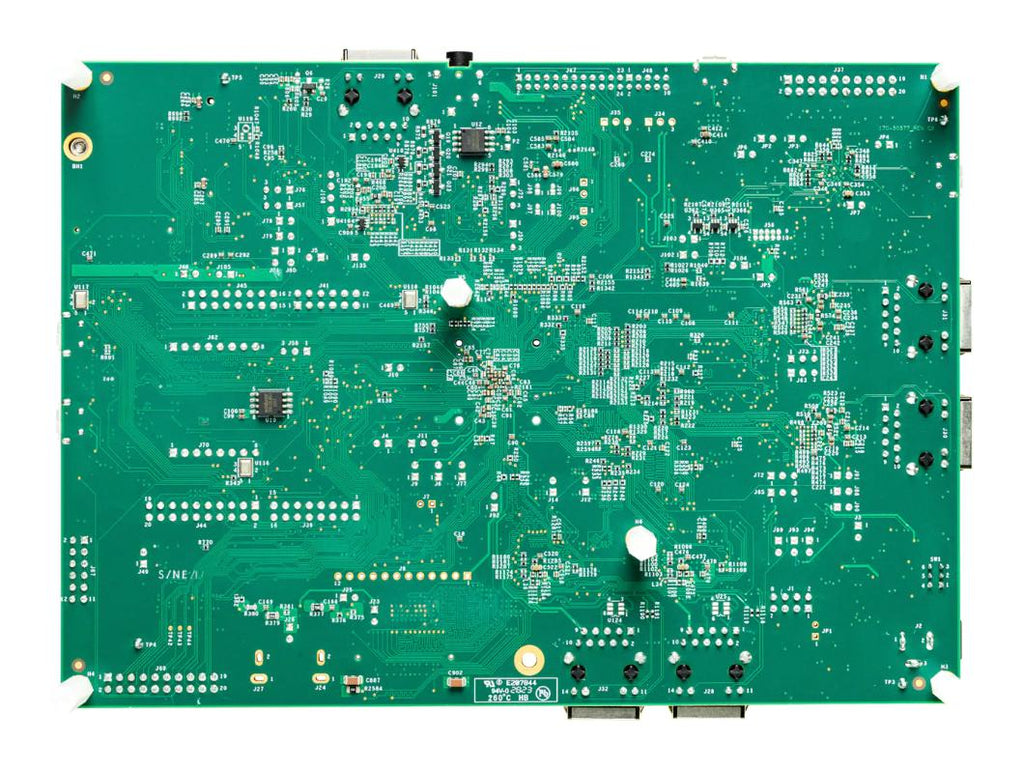

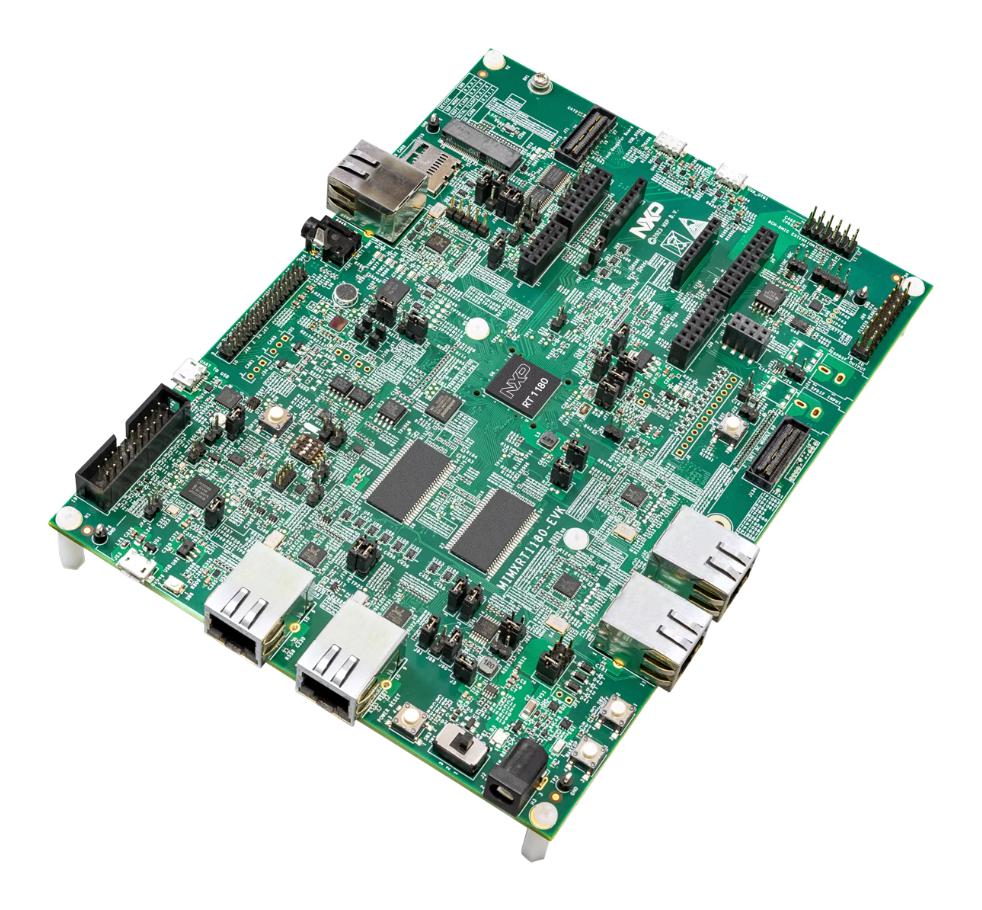

MIMXRT1180-EVK is an i.MX RT1180 evaluation kit. It provides a powerful, extendable platform to support most features of the i.MX RT1180 Crossover MCU, which is powered by Arm® Cortex®-M7 and Arm Cortex-M33 cores. Five Ethernet ports are provided for Ethernet/TSN switch, endpoint and EtherCAT applications. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The board features a high speed USB debug probe based with easy firmware update option to support MCU-Link. Suitable for automotive (automotive networking, gateway) and industrial (AC/Servo drives, building automation, factory automation, industrial gateway and metering) applications.
- MIMXRT1189CVM8C processor, Arm Cortex-M7 core (up to 800MHz), Arm Cortex-M33 core (up to 300MHz)
- Board memory: 64Mbit HyperRAM, 512Mbit SDRAM, 512Mbit octal flash, 128Mbit QSPI flash
- Board memory: 4Mbit LPSPI flash, flash daughter card interface, TF socket for SD card
- Connectivity: 3x Ethernet (10/100/1000M) connectors for TSN switch
- 2x Ethernet (10/100M) connectors for EtherCAT, TSN switch and endpoint
- 2x Micro-USB OTG connectors, M.2 connector, 2x CAN transceivers, ARDUINO® interface
- Audio: Audio codec, 8CH-DMIC extension, 3.5mm audio headphone jack, external speaker connection
- Debug capabilities: JTAG connector, On-board MCU-Link debugger
- Sensors: 3-axis MEMS accelerometer sensor FXLS8974CFR3 for I2C
- 3D accelerometer, 3D gyroscope LSM6DSOXTR and Delta-Sigma ADC modulator AMC1106M05DWV
Contents
MIMXRT1189CVM8C evaluation board, Power adapter, Micro-B USB cable.
Product details
| Silicon Manufacturer | NXP |
| Silicon Family Name | i.MX RT |
| Core Sub-Architecture | Cortex-M33F, Cortex-M7F |
| Kit Contents | Evaluation Board MIMXRT1189CVM8C, Power Adapter, Micro-B USB Cable |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Silicon Core Number | MIMXRT1189CVM8C |
| Product Range | - |
Other details
| Brand | NXP |
| Part Number | MIMXRT1180-EVK |
| Quantity | Each |
| User Manual (8.04MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
