Product Overview

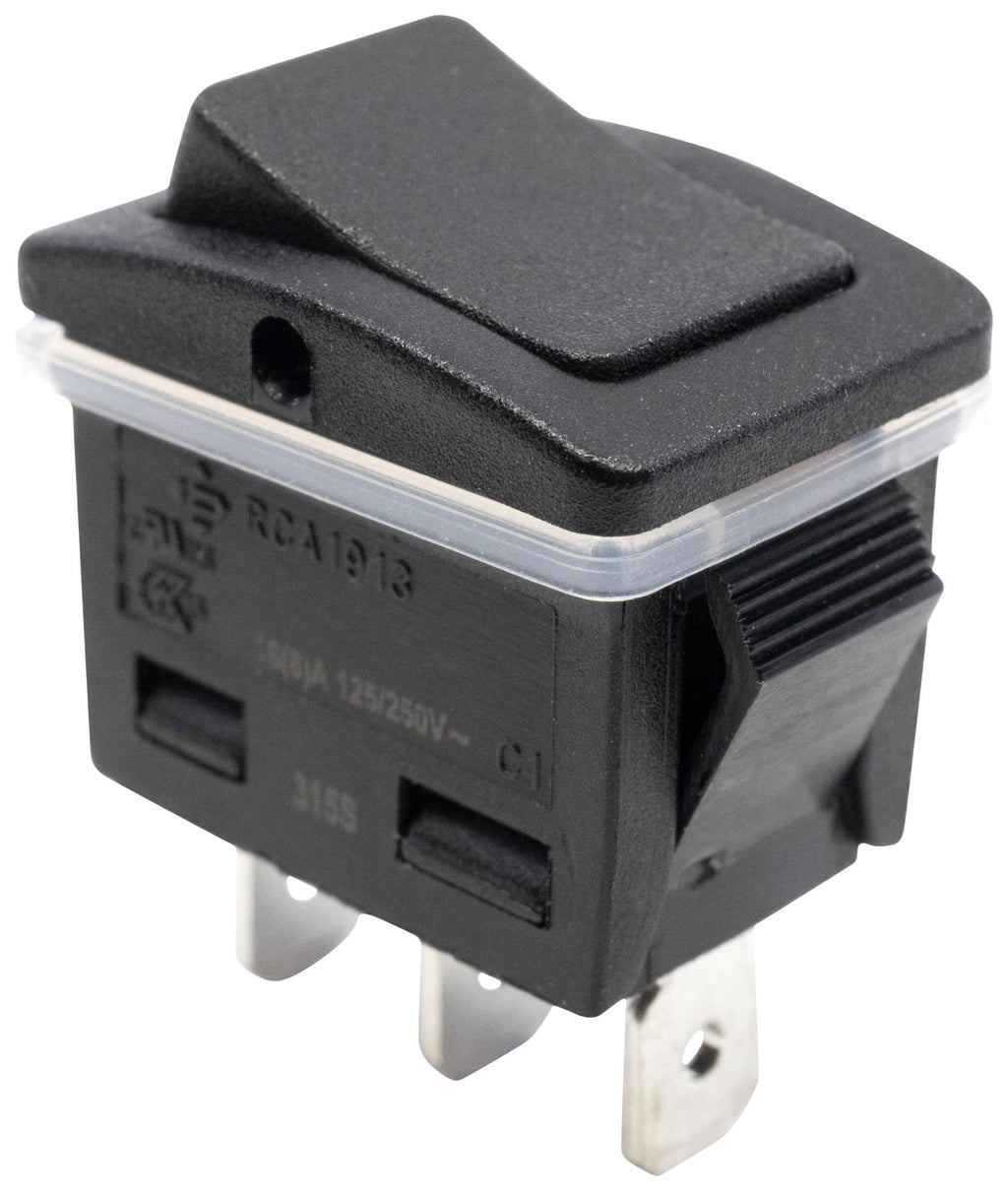

RCA1913F2ABLKBLKNN is a RCA1913 series rocker switch.
- 19mm x13mm panel cutout
- UL file number E194579, ENEC license ENEC-05335-A1
- Electrical life of 10,000 cycles
- Contact resistance of 20mohm maximum
- Insulation resistance of 100Mohm min at 500V DC
- Dielectric strength of 1,500V AC for 1 minute
- Ingress protection: full IP68
- Operating/storage temperature range from 0°C to 55°C
- Quick connect - 0.187” terminal, On-On function
- Black body and actuator
Product details
| Switch Operation |
On-On |
| Illumination |
Non Illuminated |
| Actuator / Cap Colour |
Black |
| Contact Current AC Max |
16A |
| Contact Current DC Max |
- |
| Panel Cutout Height |
13mm |
| Panel Cutout Diameter |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Contact Configuration |
SPST-NO |
| Switch Mounting |
Panel, Snap-In |
| Product Range |
RCA1913 Series |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Panel Cutout Width |
19.8mm |
| Switch Terminals |
Quick Connect |
Other details
| Brand |
E-SWITCH |
| Part Number |
RCA1913F2ABLKBLKNN |
| Quantity |
Each |
| Technical Data Sheet (341.83KB) EN |
View or download |
