Product Overview

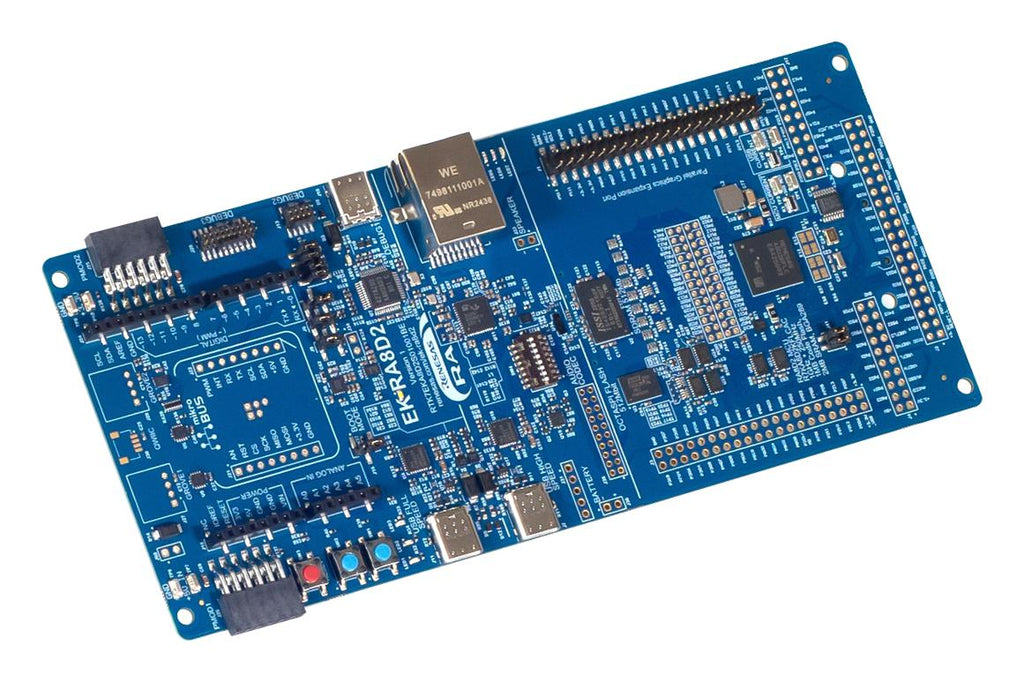

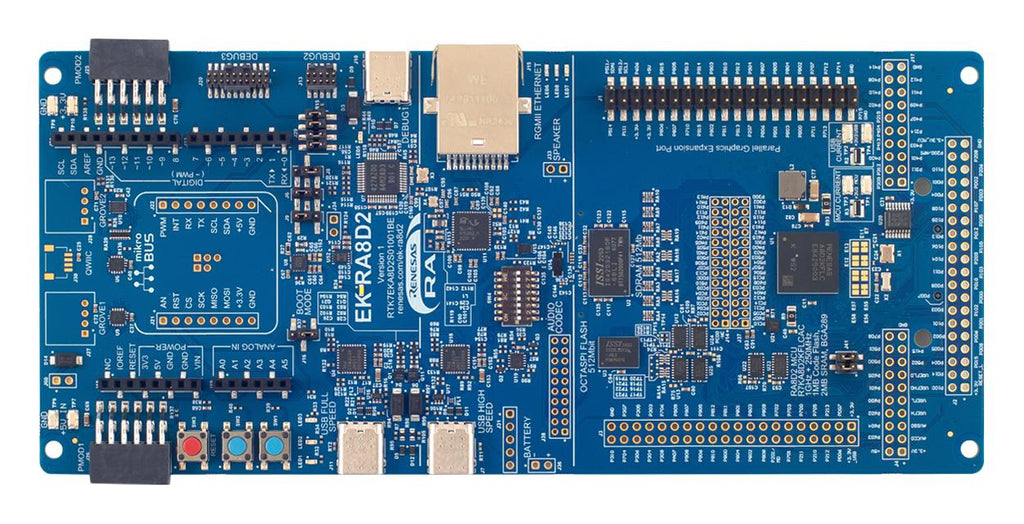

RTK7EKA8D2S01001BE is an evaluation kit for RA8D2 Microcontroller. It enables users to seamlessly evaluate the features of the RA8D2 MCU group and develop embedded systems applications using Flexible Software Package (FSP) and e2 studio IDE. The users can use the rich on-board features along with their choice of popular ecosystems add-ons to bring their big ideas to life.
- Features R7KA8D2KFLCAC MCU with Arm® Cortex®-M85 (1GHz) and Cortex®-M33 (250MHz) cores
- Offers 1MB MRAM and 2MB ECC-protected SRAM memory
- Native pin access through 2 x 20-pin, and 2 x 40-pin headers (not populated)
- Includes parallel graphics expansion port for display interface

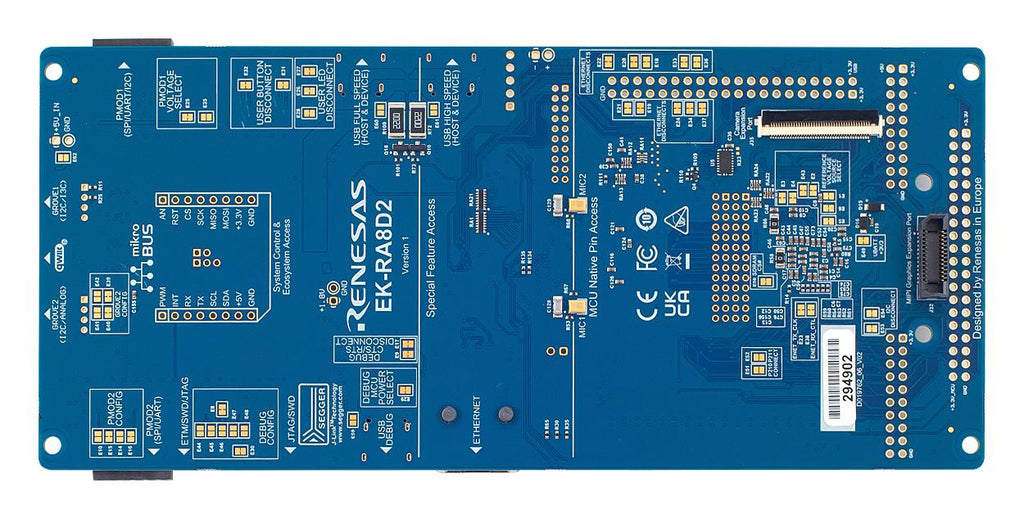

- Camera expansion port (present at the underside of the EK-RA8D2 board)
- MCU current measurement points for precision current consumption measurement
- On-board 24MHz and 32.768Hz crystal oscillators for accuracy
- Supports internal low-precision clock sources within RA MCU
Product details
| Silicon Manufacturer |
Renesas |
| Silicon Family Name |
RA8 |
| Core Sub-Architecture |
Cortex-M85, Cortex-M33 |
| Kit Contents |
Evaluation Board R7KA8D2KFLCAC |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Bits |
32bit |
| Core Architecture |
ARM |
| Silicon Core Number |
R7KA8D2KFLCAC |
| Product Range |
RA8 Family, RA8D2 Series Microcontrollers |
