Product Overview

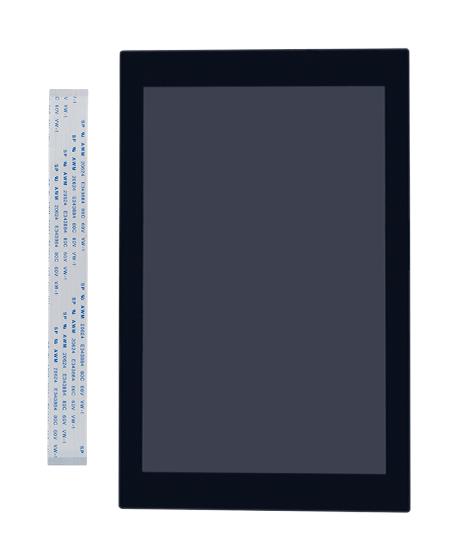

AVNET AES-ACC-DISP-7INCH TFT LCD, 7 ", 800 x 1280 Pixels, Portrait, 3.3V
Product details
| Display Size |
7" |
| VGA Size |
- |
| Display Appearance |
- |
| Interface Type |
MIPI, I2C |
| Touchscreen |
Projected Capacitive Touch |
| Operating Temperature Min |
-20°C |
| Display Pinout |
40 Way Connector |
| SVHC |
No SVHC (25-Jun-2025) |
| Resolution |
800 x 1280 Pixels |
| Display Orientation |
Portrait |
| Logic Voltage |
3.3V |
| Display Brightness |
340cd/m² |
| Module Size |
180.92mm x 113.94mm |
| Operating Temperature Max |
70°C |
| Product Range |
- |
Other details
| Brand |
AVNET |
| Part Number |
AES-ACC-DISP-7INCH |
| Quantity |
Each |
| Technical Data Sheet (2.19MB) EN |
View or download |
