Product Overview

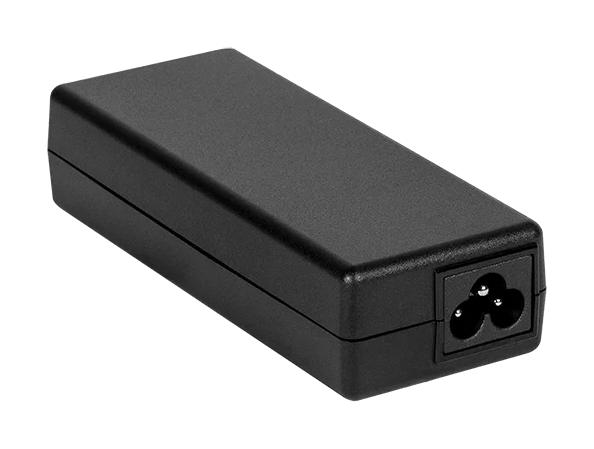

ADT-090A24AA F-A is an extremely compact 90W delta AC-DC adapter. This product meets efficiency DoE level VI and no-load power consumption <lt/> 0.15W at 115V AC and 230V AC input. It conforms to major international safety standards according to IEC/EN/UL 62368-1 and IEC/EN 60950-1 approval for ITE including BSMI, CCC, PSE and KC. In addition, it also meets the EMI approvals to EN/BS EN 55032 class B. It includes overvoltage, overload, overcurrent, overtemperature and short circuit protections. Application includes test and measurement.
- Input voltage from 90 to 264V AC, rated output voltage is 24V DC, rated output current is 3.75A
- Output power is 90W, typical efficiency is 90%(115V AC), 91.5%(230V AC)
- Compact size design, universal AC input / full range, delta standard
- Fully enclosed plastic case
- C6 input connector
- Plug, moulding type O.D is 5.5mm, I.D is 2.5mm, length is 11mm(barrel)
- Operating temperature range from -10°C to +60°C
- Dimension (L × W × H) is 4.96 x 2 x 1.18inch (125.98mm x 50.8mm x 29.97mm)
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
90W |
| Output Current - Output 1 |
3.75A |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Product Range |
ADT-090A Series |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Connector |
Barrel Plug 2.5mm x 5.5mm x 11mm |
| Output Current - Output 3 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Plug Type |
IEC 60320 C6 |
Other details
| Brand |
DELTA ELECTRONICS |
| Part Number |
ADT-090A24AA F-A |
| Quantity |
Each |
