Product Overview

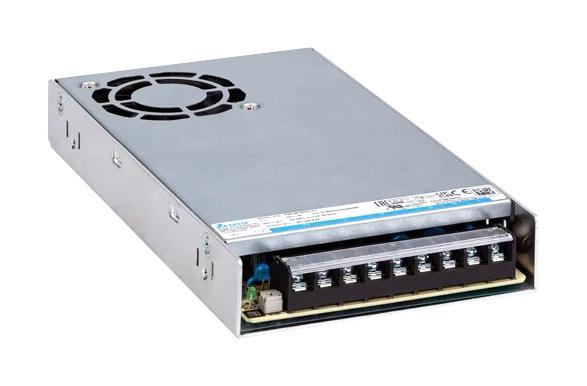

PMR-48V320W1AT is a PMH panel mount power supply. It obtains shock and vibration certification IEC 60068-2. The product is designed in a 30mm low profile and comes with a universal AC input voltage ranging from 90V AC to 264V AC. It is made for installation in limited spaces. Its built-in active PFC circuit provides high power factor values and conforms to harmonic current emission standards IEC/EN 61000-3-2, class A and class D. It includes overvoltage, overload, overcurrent, over temperature, short circuit protection. Application includes building automation, household appliance.
- Rated output voltage is 48V, rated output current is 6.7A, output power is 320.4W (max)
- Typical efficiency at 100% load is 92% (230V AC)
- Single phase, terminal block connector type
- No load power consumption is less than 0.5W
- Low profile design is 30mm height
- Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
- Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
- Operating temperature range from -30°C to +70°C (-40°C cold start)
- Dimension (L x W x D) is 8.46 x 4.53 x 1.18inch (214.88mm x 115.06mm x 29.97mm)
Product details
| Power Supply Applications |
ITE & Household |
| Output Power Max |
321.6W |
| Output Current - Output 1 |
6.7A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Adjustable, Fixed |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1Outputs |
| Output Voltage - Output 1 |
48V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
90V AC to 264V AC |
| Product Range |
PMR Series |
Other details
| Brand |
DELTA ELECTRONICS |
| Part Number |
PMR-48V320W1AT |
| Quantity |
Each |
