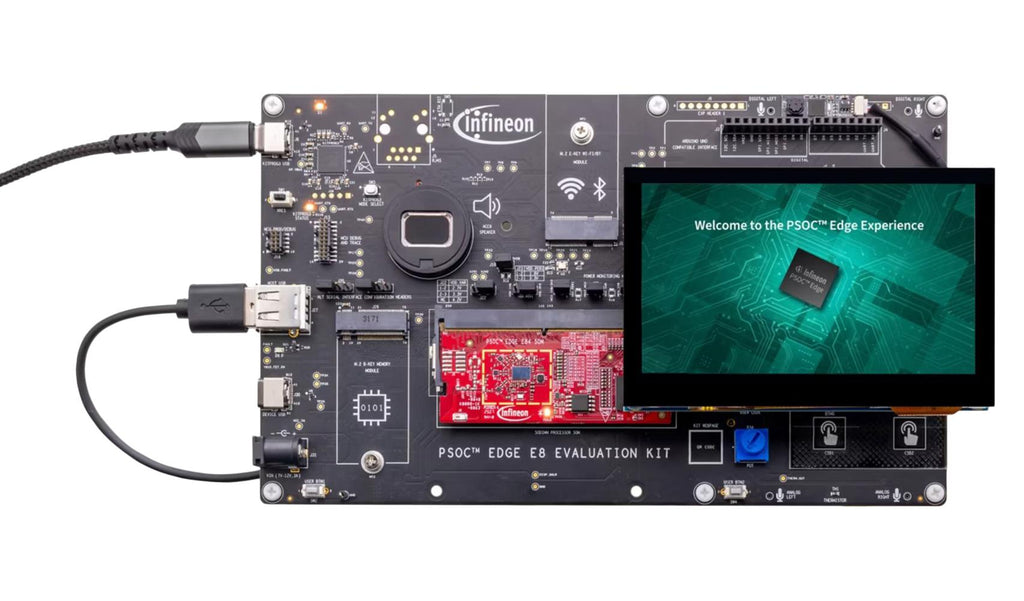

INFINEON KITPSE84EVALTOBO1 Evaluation Kit, PSOC Edge E84, 32bit, ARM Cortex-M55F/M33F

KITPSE84EVALTOBO1 is a PSOCTM Edge E84 evaluation kit. The PSOC™ Edge E84 evaluation kit enables applications to use the PSOC™ Edge E84 series microcontroller (MCU) together with multiple on-board multimedia, Machine Learning (ML) and connectivity features including custom MIPI-DSI displays, audio interfaces, and AIROC™ Wi-Fi and Bluetooth® combo-based connectivity modules. The PSOC™ Edge E84 MCUs are based on high-performance Arm® Cortex®-M55 including Helium DSP support, an Ethos-U55 NPU and a low-power Arm® Cortex®-M33 paired with Infineon's ultra-low power NNLite hardware accelerator. The evaluation kit carries a PSOC™ Edge E84 MCIJ on a SODIMM-based detachable SOM board connected to the baseboard. The MCU SOM also has 128MB of QSPI flash, IGB of octal flash, 128MB of octal RAM, PSOCM 4000T as CAPSENSE™ co-processor and on- board AIROC™ Wi-Fi and Bluetooth® combo.

• Design and develop next generation Machine Learning edge devices
• Complete out-of-box experience and ease of use with ModusToolbox™ and DEEPCRAFT™ Al Suite support
• Code examples showcasing machine learning capabilities
• Onboard AIROC™ Wi-Fi and Bluetooth combo, PSOC™ 4000T as CAPSENSE"' co-processor
• Analog and PDM microphones, a headphone connector and an onboard speaker
• 6-axis accelerometer and gyroscope IMIJ and a 3-axis magnetometer
• Connectors for high-speed interfaces, as Ethernet and USB
• MIPI-DSI display interface and KitProg3 onboard SWD programmer/debugger
• M .2 (B-key) for external memory and M .2 (E-key) for radio connectivity modules

Contents

PSOC" Edge E84 base board, PSOC" Edge E84 SOM module, 4.3in capacitive touch display and USB camera module, USB Type-C to Type-C cable, Four jumper wires, Two proximity sensor wires, Four stand-offs for Raspberry Pi compatible display, Quick start guide.
