Product Overview

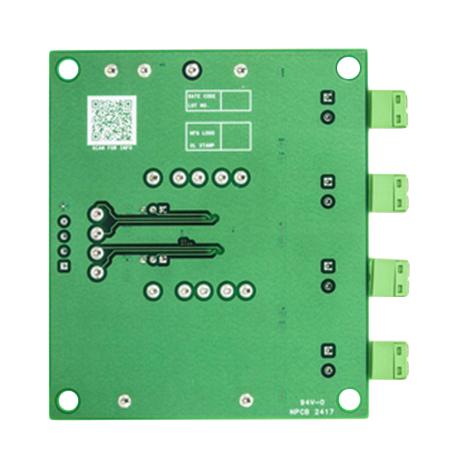

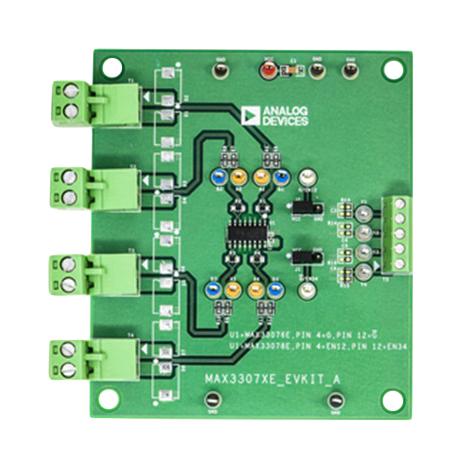

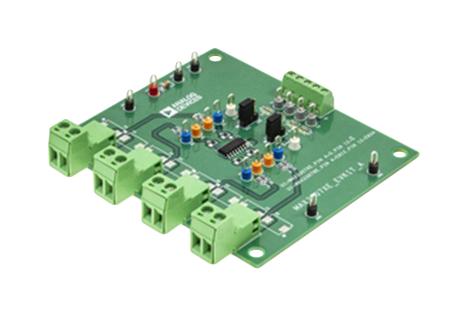

MAX3307XEEVKIT# is an evaluation kit (EV kit) that demonstrates the functionality of MAX33078E quad-channel RS-485/RS422 receivers with extended ±25V input common-mode range and ±65V high fault-tolerant. Power for the MAX3307XE EV kit can be provided from a single +3V to +5.5V supply. The EV kit includes on-board terminations for easy evaluation. The MAX3307XE EV kit is assembled with a MAX33078E in a 16-pin SOIC package. The EV kit can also be used to evaluate the MAX33076E with modification.
- Terminal block connectors for easy RS-485/RS-422 network evaluation
- Proven PCB layout
- Fully assembled and tested
Product details
| Kit Application Type |
Interface |
| Silicon Manufacturer |
Analog Devices |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
| Application Sub Type |
RS485 / RS422 Receiver |
| Silicon Core Number |
MAX33078EASE+ |
| Kit Contents |
Evaluation Board MAX33078EASE+ |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
MAX3307XEEVKIT# |
| Quantity |
Each |
| Technical Data Sheet (86.00B) EN |
View or download |
