Product Overview

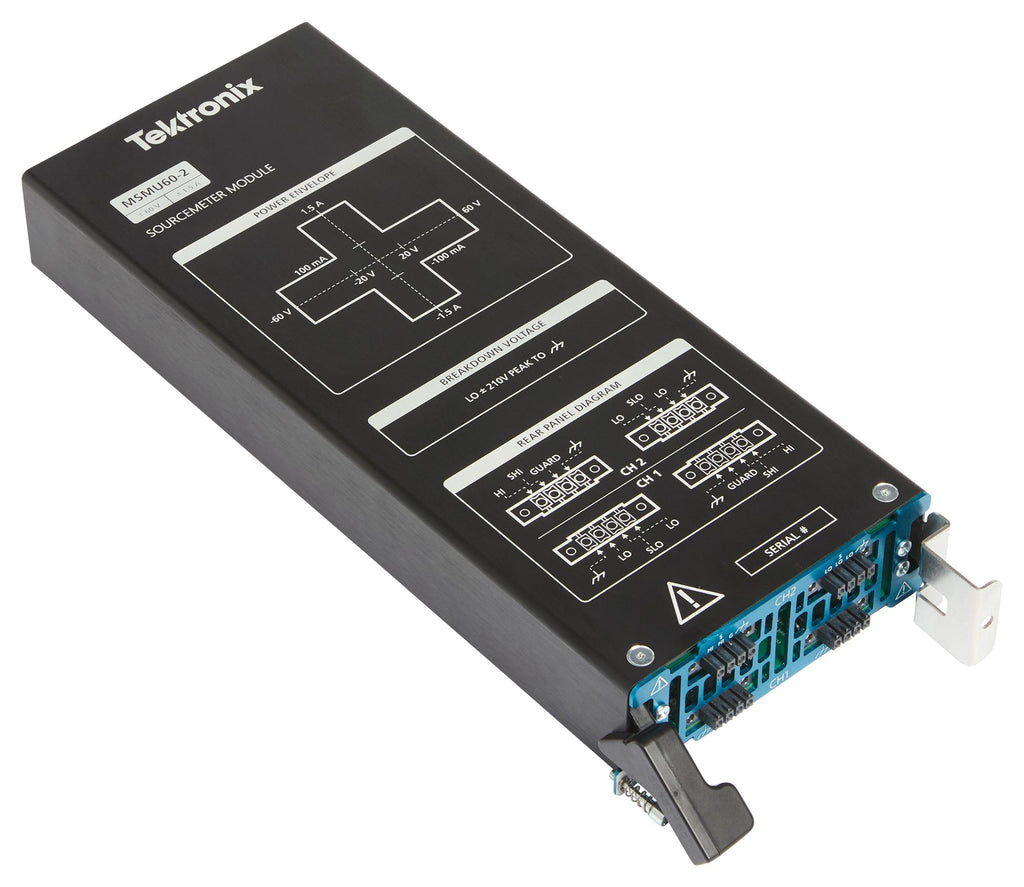

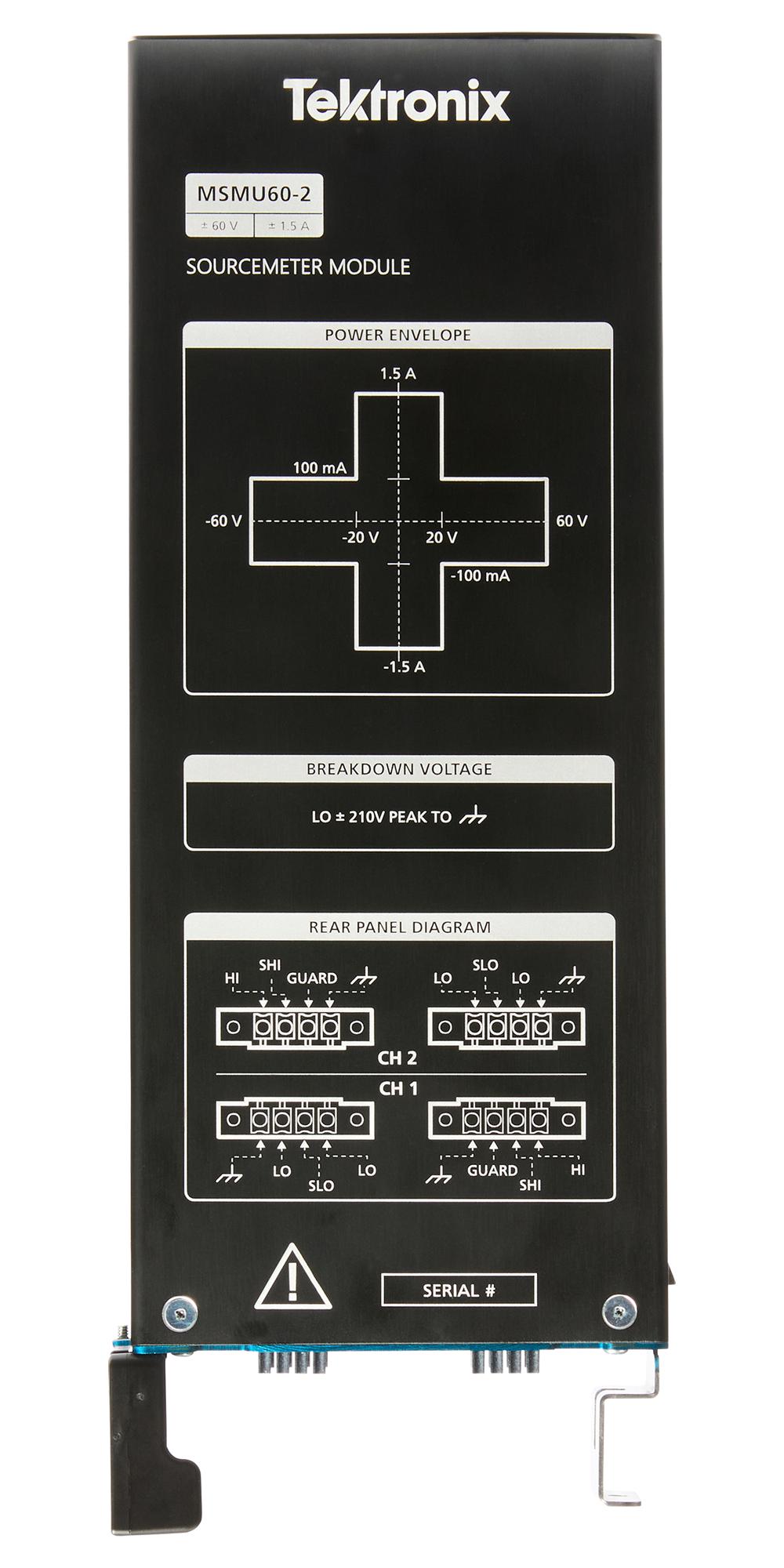

MSMU60-2 is a MP5000 series Source Measure Unit (SMU) module. It is suitable for a wide range of applications from validating design and debugging to complex parallel test systems used in ATE.
- 2 SMU channels per module, 6 channels per mainframe
- Up to 60V and up to 1.5A per channel
- 4-quadrant voltage/current source & measurement per channel, with 6½-digit resolution down to 100fA
- Integrated 1MSa/s ADCs for both voltage and current measurements using fast sample rates
- Up to 6V between force and sense allowing users more flexibility in cabling and test setup
- User selectable auto-sense resistor prevents excess voltage at Force Hi if there are contact errors
- Asymmetric compliance: configure independent positive and negative limit values
Product details
| No. of Channels |
2Channels |
| Source Meter Function |
Current/Voltage Source |
| Source Voltage Range |
200mV to 60V |
| Resistance Measurement Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Product Range |
MP5000 Series |
| Output Power |
30W |
| Source Current Range |
100nA to 1.5A |
| Manufacturer Warranty |
1 Year |
Other details
| Brand |
TEKTRONIX |
| Part Number |
MSMU60-2 |
| Quantity |
Each |
| Technical Data Sheet (2.80MB) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
