Product Overview

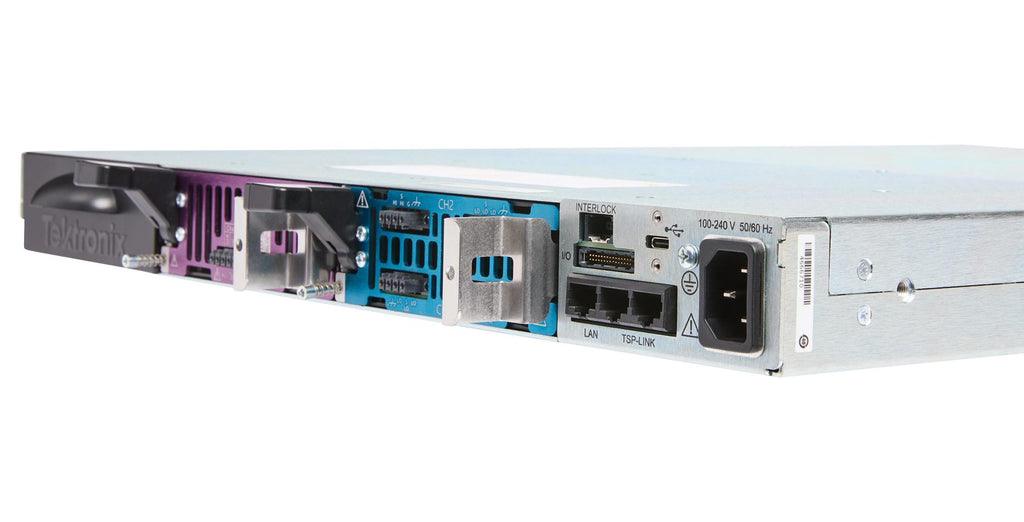

MP5103 is a MP5000 series, 3-slot low profile modular mainframe. It is suitable for a wide range of applications from validating design and debugging to complex parallel test systems used in ATE.
- Compact 1U mainframe offering space and cost efficiency over conventional rack-and-stack systems
- Three configurable slots to mix & match PSU and SMU modules for optimized cost-performance
- Add or remove modules effortlessly without powering off the mainframe, thus reducing downtime
- Additional digital I/O pins (18) support efficient handshaking with other test rack equipment
- TSP-link enables precise synchronization within 500ns across multiple mainframes
- Ideal for high channel count parallel testing
- Employs 1Gbps Ethernet and USB 3.0 for fast data streaming
- Features a modern touch display for simplified setup and troubleshooting
Product details
| No. of Slots / Outputs |
3Outputs |
| Power Supply Output Type |
Programmable |
| Output Voltage Max |
- |
| Product Range |
MP5000 Series |
| Output Power Max |
600W |
| Output Voltage Min |
- |
| Output Current Max |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
TEKTRONIX |
| Part Number |
MP5103 |
| Quantity |
Each |
| Technical Data Sheet (2.80MB) EN |
View or download |
