Product Overview

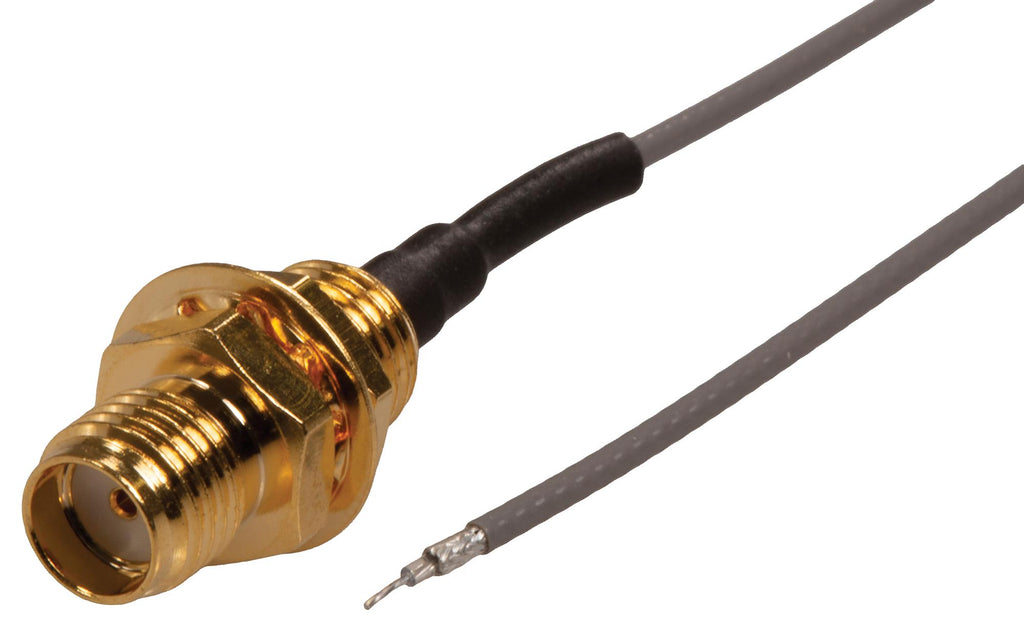

This RF coaxial cable assembly features a stripped and tinned free end on one side and an RP-SMA female bulkhead jack (front mount) on the other. It is designed for high-frequency applications up to 6GHz and uses a 1.13mm coaxial cable with a length of 100mm. The stripped and tinned termination allows easy soldering to PCBs or custom connectors, while the RP-SMA connector provides an IP67-rated seal for rugged environments. This assembly is ideal for wireless modules and antenna connections in compact devices.
- Suitable for Cellular modules, Wi-Fi®, Bluetooth®, IoT devices, robotics, drones, medical devices, and embedded wireless systems
- Connector A: RP-SMA Female, Bulkhead Front Mount
- Connector B: Stripped and Tinned Free End
- Cable Length: 100mm
- Cable Type: 1.13mm Coax
- Impedance: 50Ω
- Max Frequency: 6GHz
- IP Rating: IP67
Product details
| Cable Length - Imperial |
3.9" |
| Cable Length - Metric |
100mm |
| Connector Type A |
SMA RP Bulkhead Jack |
| Impedance |
50ohm |
| Product Range |
- |
| Connector to Connector |
SMA RP Bulkhead Jack to Free End |
| Coaxial Cable Type |
1.13mm |
| Connector Type B |
Free End |
| Jacket Colour |
Grey |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SIRETTA |
| Part Number |
ASMH010ZN113S11 |
| Quantity |
Each |
