Product Overview

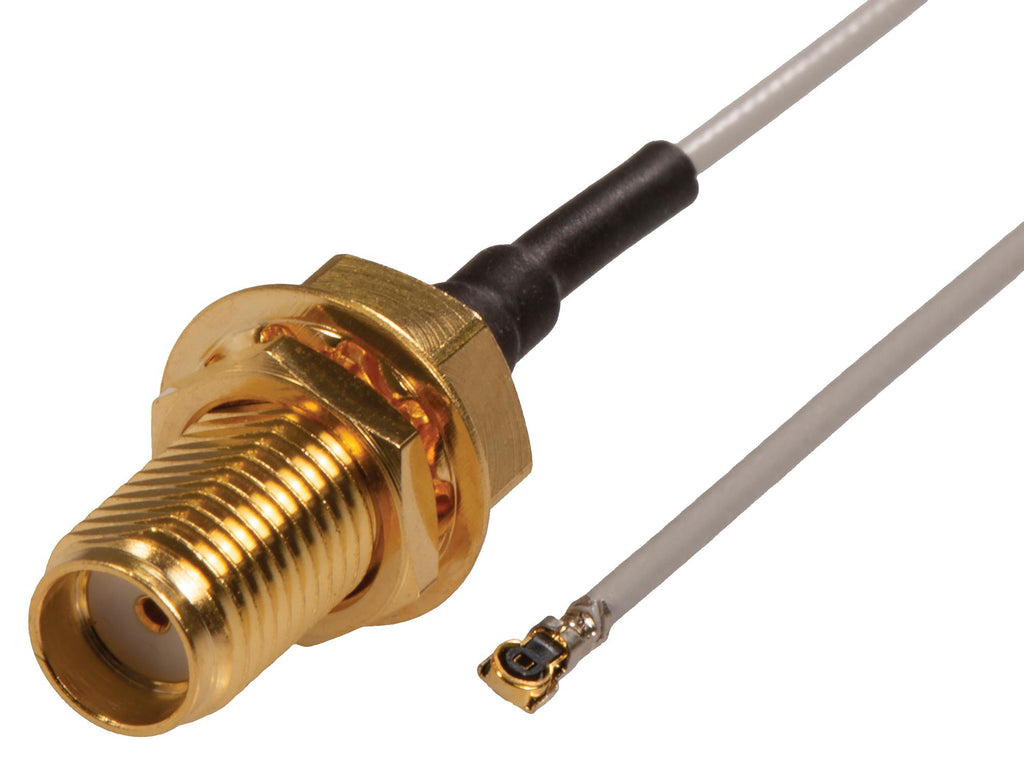

This is a high-quality RF coaxial cable assembly featuring an I-PEX MHF5L plug on one end and an RP-SMA female bulkhead jack on the other. It is designed for applications requiring secure RF connectivity up to 6GHz. The assembly uses a 1.13mm coaxial cable, measures 100mm in length, and provides 50Ω impedance. The SMA connector is reverse-polarity and rear-mount bulkhead style, making it suitable for embedded wireless modules and antenna connections in compact devices.
- Suitbale for Cellular modules, Wi-Fi®, Bluetooth®, IoT devices, robotics, drones, and wearables
- Connector A: RP-SMA Female, Bulkhead Rear Mount

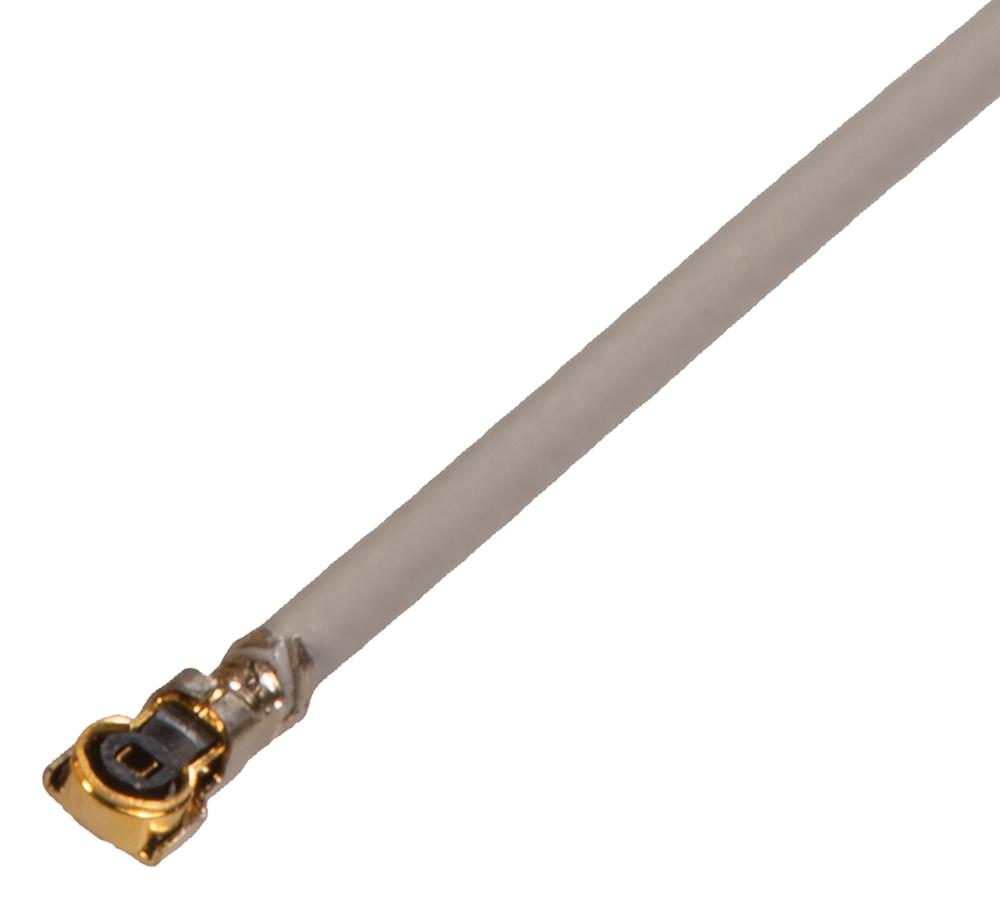

- Connector B: I-PEX MHF5L Plug (Right Angle)
- Cable Length: 100mm
- Cable Type: 1.13mm Coax
- Impedance: 50Ω
- Max Frequency: 6GHz
- IP Rating: IP67
Product details
| Connector to Connector |
90° IPEX MHF5L Plug to SMA RP Bulkhead Jack |
| Cable Length - Metric |
100mm |
| Connector Type A |
IPEX MHF5L Right Angled Plug |
| Impedance |
50ohm |
| Product Range |
- |
| Cable Length - Imperial |
3.9" |
| Coaxial Cable Type |
1.13mm |
| Connector Type B |
SMA RP Bulkhead Jack |
| Jacket Colour |
Grey |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
SIRETTA |
| Part Number |
ASMGB010ZN113S11 |
| Quantity |
Each |
