Product Overview
ADRF5050-EVALZ is an evaluation board designed to evaluate the features and performance of the ADRF5050. The ADRF5050 is a nonreflective SP4T switch manufactured in a silicon on insulator (SOI) process. The ADRF5050 operates from 100MHz to 20GHz with insertion loss less than 1.20dB and isolation higher than 47dB.
- Full featured evaluation board for the ADRF5050
- Easy connection to test equipment
- Additional through line for calibration
- ADRF5050-EVALZ has two power-supply inputs, four control inputs, and a ground
- ADRF5050-EVALZ is designed using RF circuit design techniques on a 4-layer printed circuit board

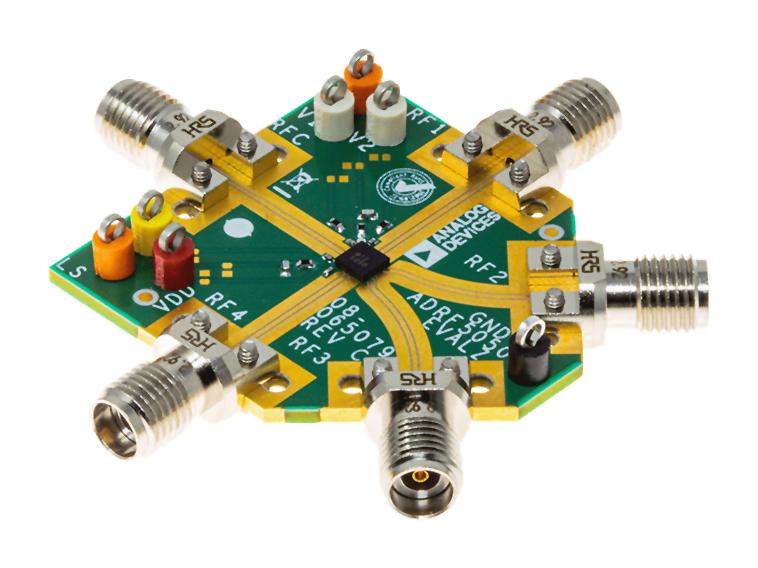

- ADRF5050-EVALZ connectorized board, assembled with the ADRF5050 and its application circuitry
Product details
| Board Type |
Evaluation Board |
| Silicon Core Number |
ADRF5050 |
| Application Sub Type |
RF Switch |
| Product Range |
- |
| Silicon Manufacturer |
Analog Devices |
| IC Function |
Non-Reflective SP4T Switch |
| Kit Contents |
Evaluation Board ADRF5050 |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
ADRF5050-EVALZ |
| Quantity |
Each |
| Technical Data Sheet (93.00B) EN |
View or download |
