Product Overview

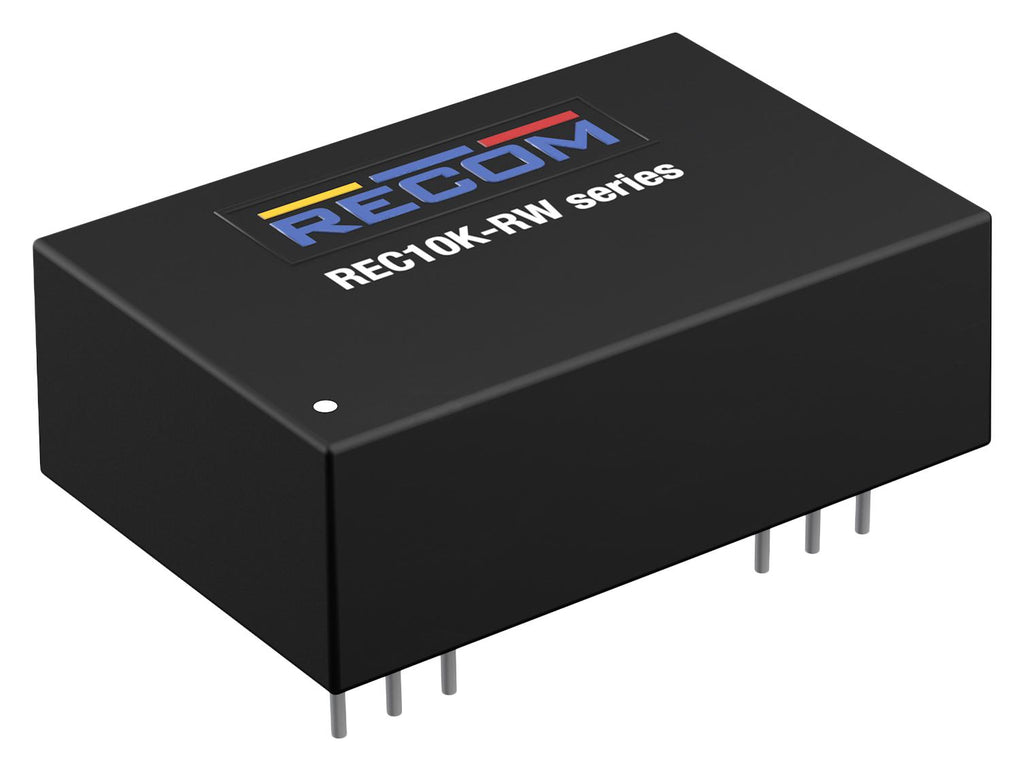

REC10K-2405SRW/H4 is a REC10K-RW series high power density, wide input voltage range, regulated DC-DC converter in an industry standard DIP24 case size. Despite its small size, the REC10K-RW converter is a fully specified device, with high efficiency, no minimum load, 4000V DC/1min isolation, tight regulation, and low ripple/noise figures. The output is also fully protected against short circuits, overcurrent, and overvoltage, and has a ±10% trim range. This converter fits well in industrial applications where board space is at a premium. Typical applications include building and home automation, datacom and telecom, energy, industrial and automation, test and measurement.
- Wide 4:1 input, ON/OFF control pin, UVLO, SCP
- Output voltage trimming (±10%), 0% minimum load
- 3 year warranty
- 9-36V DC input voltage range
- Output voltage : 5V DC
- Output current is 2000mA
- 84% typical efficiency
- 10W output power
- Operating temperature range: -40°C to +100°C
- Dimension (LxWxH): 32.1 x 20.6 x 10.2mm
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
4:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
2A |
| Output Current - Output 2 |
- |
| Isolation Voltage |
4kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10.2mm |
| Input Voltage DC Min |
9V |
| Product Range |
REC10K-RW Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
10W |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
24V |
| Width |
20.6mm |
| Depth |
32.1mm |
| Input Voltage DC Max |
36V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
RECOM POWER |
| Part Number |
REC10K-2405SRW/H4 |
| Quantity |
Each |
| Technical Data Sheet (51.00B) EN |
View or download |
