Product Overview
SRP1-CEDZH-080NC-N is a SRP1-CE series solid-state relay. It offers an affordable solution for controlling simple heating applications. It is designed with efficiency in mind; this solid-state relay (SSR) provides essential features without compromising on quality. It features an industrial-grade build: crafted for durability, this SSR is built to withstand demanding environments using back-to-back SCR to guarantee high quality, reliability, and longevity. The IP20-rated design ensures protection against dust and accidental contact. It reduces electrical noise and minimizes voltage spikes during switching, enhancing overall system stability. Applications include cooking ovens and hot drinks dispensers, commercial fryers and food warmers, air handlers and other HVAC equipment, plastic and packaging machinery, industrial ovens and electronics production equipment, and heating in industrial automation.
- Easily remove the cover for maintenance or adjustments
- Zero cross switching, efficient design with high quality
- Compliance with International standards (cЯUus, VDE, CE, UKCA)
- 80A max output current
- 24-660V AC output voltage
- 4-32V DC input voltage range
- SPST-NO output configuration
- 50-60Hz nominal operating frequency
- Ambient operating temperature range from -40 to 100°C (no icing, no condensation)
Product details
| Contact Configuration |
SPST-NO |
| Operating Voltage Max |
660VAC |
| Relay Terminals |
Screw |
| Operating Voltage Min |
24VAC |
| Control Voltage Max |
32VDC |
| SVHC |
No SVHC (25-Jun-2025) |
| Load Current |
80A |
| Relay Mounting |
Panel Mount |
| Switching Mode |
Zero Crossing |
| Control Voltage Min |
4VDC |
| Product Range |
SRP1-CE Series |
Other details
| Brand |
LITTELFUSE |
| Part Number |
SRP1-CEDZH-080NC-N |
| Quantity |
Each |
| Technical Data Sheet (901.86KB) EN |
View or download |

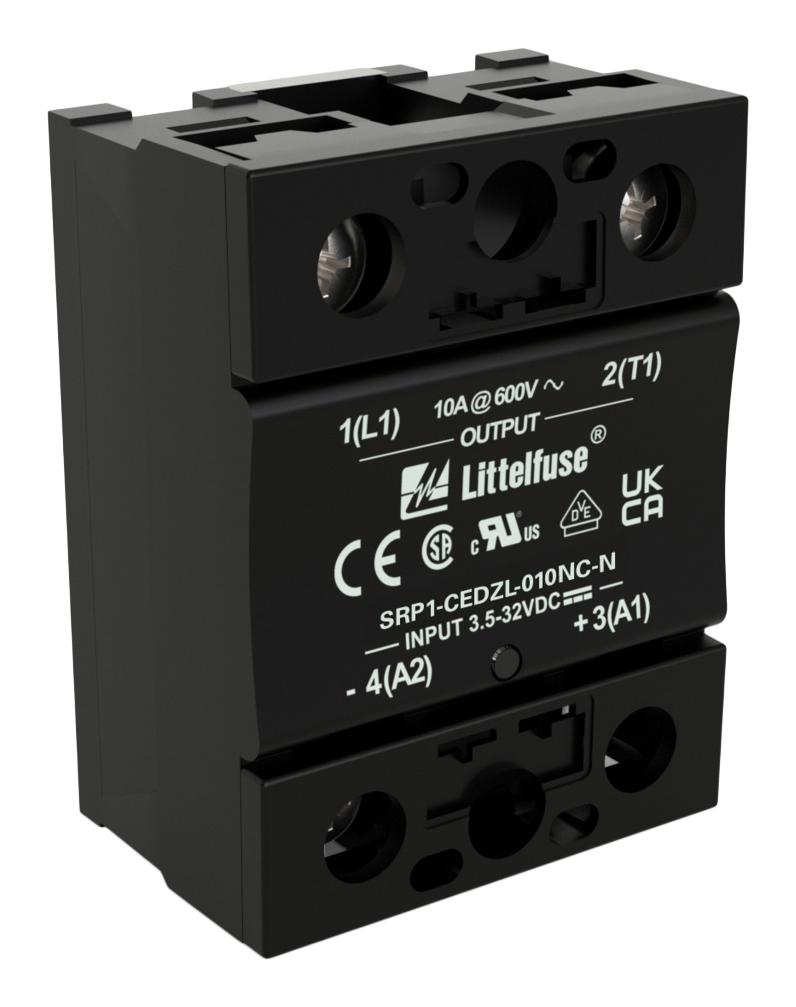

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
