Product Overview

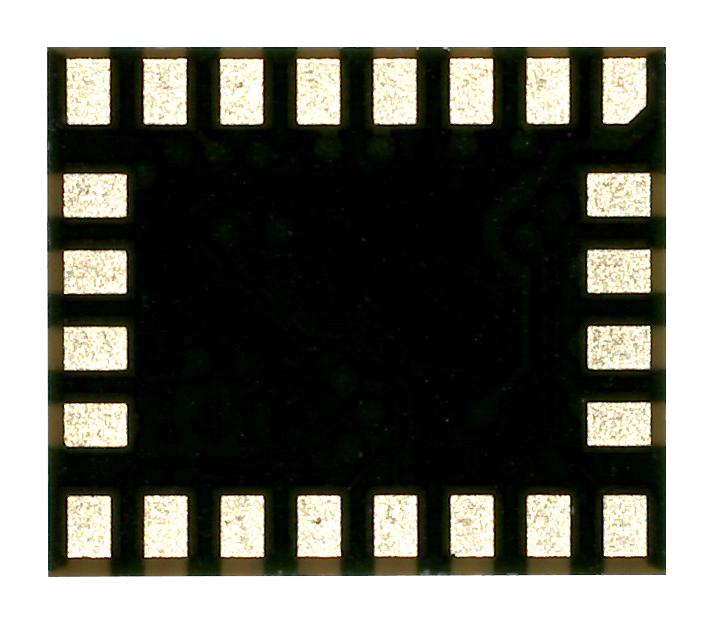

ANALOG DEVICES ADRF5048BCCZN RF Switch, SP4T, 100MHz to 45GHz Frequency, 3.15 to 3.45V Supply, -40 to 105°C, LGA-EP-24
Product details
| RF Switch Configuration |
SP4T |
| Frequency Response RF Min |
100MHz |
| Frequency Response RF Max |
45GHz |
| Supply Voltage Min |
3.15V |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Insertion Loss Typ |
1.4dB |
| Third Order Intercept Point IIP3 Typ |
52dBm |
| Frequency Min |
100MHz |
| Frequency Max |
45GHz |
| RF IC Case Style |
LGA-EP |
| IC Case / Package |
LGA-EP |
| Supply Voltage Max |
3.45V |
| Operating Temperature Max |
105°C |
| Product Range |
- |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
ADRF5048BCCZN |
| Quantity |
Each |
| Technical Data Sheet (80.00B) EN |
View or download |
