Product Overview
HVCC153T3M221KEAX is a HVCC Class 1 series capacitor with high reliability at high voltage. This capacitor is designed to deliver exceptional performance in high voltage environments, making them ideal for medical, industrial, and security applications. Whether you're powering X-ray machines or industrial lasers, HVCC Class 1 Series capacitor offers the reliability and efficiency you need. High voltage performance designed for demanding medical, industrial, and security applications.
- 220pF capacitance with ±10% tolerance
- High reliability: pulse tested at 15kV (50 cycles), temperature cycle test (50 cycles)
- Low losses: dissipation factor is less than 1.0% at 1kHz
- Long life of 1.25 x rated voltage at 85°C for 1000h
- Ultra high voltage rating of 15,000V DC / 5,300V AC
- Operating temperature range from -30°C to +85°C
Product details
| Capacitance |
220pF |
| Capacitance Tolerance |
± 10% |
| Lead Spacing |
12.5mm |
| Product Range |
HVCC Class 1 Series |
| Operating Temperature Max |
85°C |
| Voltage(DC) |
15kV |
| Dielectric Characteristic |
T3M |
| Capacitor Terminals |
Radial Leaded |
| Operating Temperature Min |
-30°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details

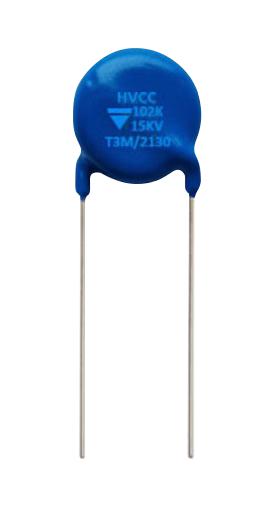

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
