Product Overview

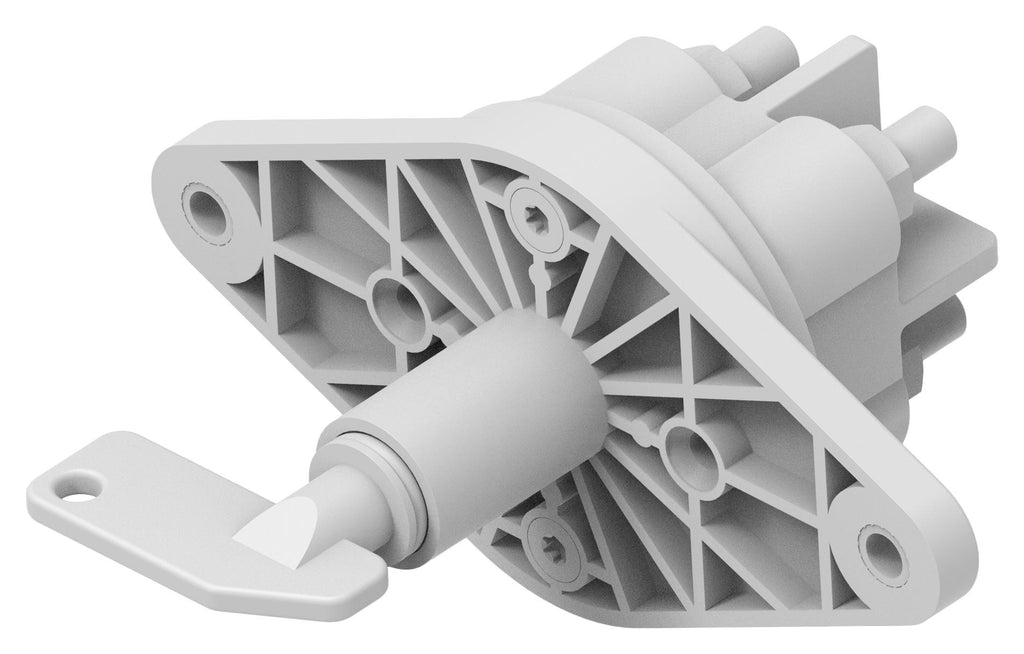

35-221 is a KISSLING series 35, sealed, 250A battery disconnect switch.
- 32V DC operating voltage
- M8 termination thread size
- Double pole
- Removable without chain switch keying option
- Long flange switch mounting option
- Red lever operating handle type
- Operating temperature range from -40 to 85°C [ -40 to 185 °F ]
Product details
| Disconnect Switch Type |
Manual |
| Contact Current Rating |
250A |
| Switch Mounting |
Flange Mount |
| Termination Thread Size |
M8 |
| IP Rating |
IP67, IP6K9K |
| SVHC |
Lead (04-Feb-2026) |
| Operating Voltage |
32VDC |
| No. of Poles |
2Poles |
| Operating Handle Type |
Lever |
| Switch Keying |
Removable |
| Product Range |
35 Series |
Other details
| Brand |
TE CONNECTIVITY - KISSLING |
| Part Number |
35-221 |
| Quantity |
Each |
| Technical Data Sheet (169.22KB) EN |
View or download |
