Product Overview

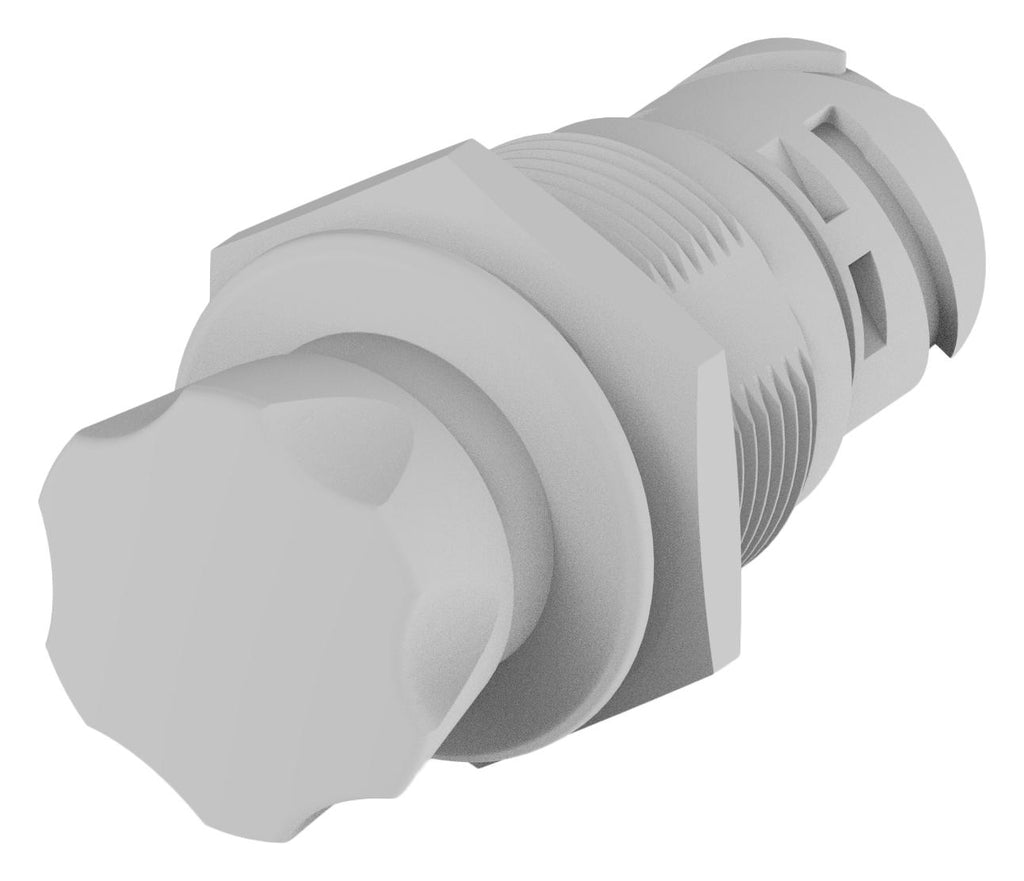

ES-2002-T121 is a KISSLING ES series E-STOP switch. It is a compact, sealed and ruggedized switch with small dimensions and a high resistance to shock, vibration, dust and moisture. These characteristics are important for safe and reliable switching. It is a plug-and-play system that can be used in hazardous environments. Safety-related switching applications are no place to compromise on quality. It is used in applications such as E-mobility charging station, commercial vehicles, off-road vehicles, lifting vehicles, construction and agricultural vehicles, hydraulic systems, and remote control panels.
- CuZn material terminal, short circuit protection
- Ag-alloy contact material, sealed housing conforms to IP6K9K
- Mechanical life of 40,000 cycles
- Voltage range from 9 to 32V DC
- Dielectric withstanding voltage is 1050V AC up to 1min
- Contact resistance is 50mohm minimum
- Insulation resistance is 100Mohm at 500V DC
- 10.1A maximum current
- 12V DC, 10mA minimum switching capacity
- Operating temperature range from -40°C to +85°C
Product details
| Contact Configuration |
DPST-NC |
| Switch Terminals |
Connector |
| Contact Voltage AC Nom |
- |
| Pushbutton Actuator Style |
Mushroom |
| Product Range |
ES Series |
| Switch Operation |
Maintained |
| Contact Current Max |
10A |
| Contact Voltage DC Nom |
24V |
| IP Rating |
IP67, IP6K9K |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
TE CONNECTIVITY - KISSLING |
| Part Number |
ES-2002-T121 |
| Quantity |
Each |
| Technical Data Sheet (1.53MB) EN |
View or download |
