Product Overview

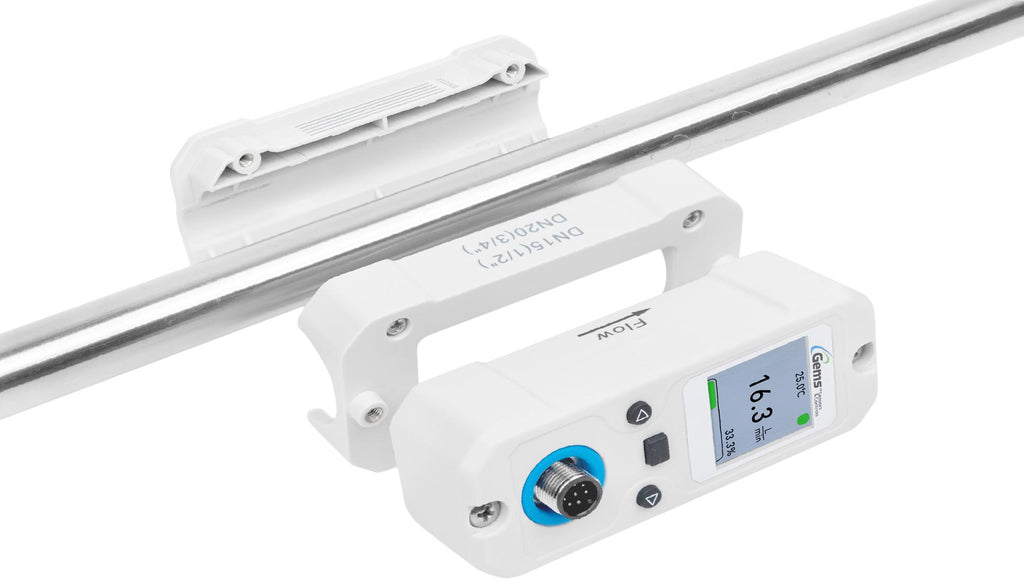

XFTDFCL100 is an XFT series clamp-on ultrasonic flow meter. The XFT uses an external clamp-on installation method, which eliminates the need for additional pipe cutting or fitting reducer unions. This allows for quick installation and significantly reduces the mechanical design and installation complexity of the fluid system. Once installed, it requires no additional maintenance for long-term use. The measurement accuracy remains unaffected over extended periods. Applications include general automation machine cooling systems, industrial chiller flow monitoring, liquid-cooled servers, CDU, semiconductor process equipment, microwave/RF power supply cooling water monitor.
- No moving parts, no pressure loss, no contamination

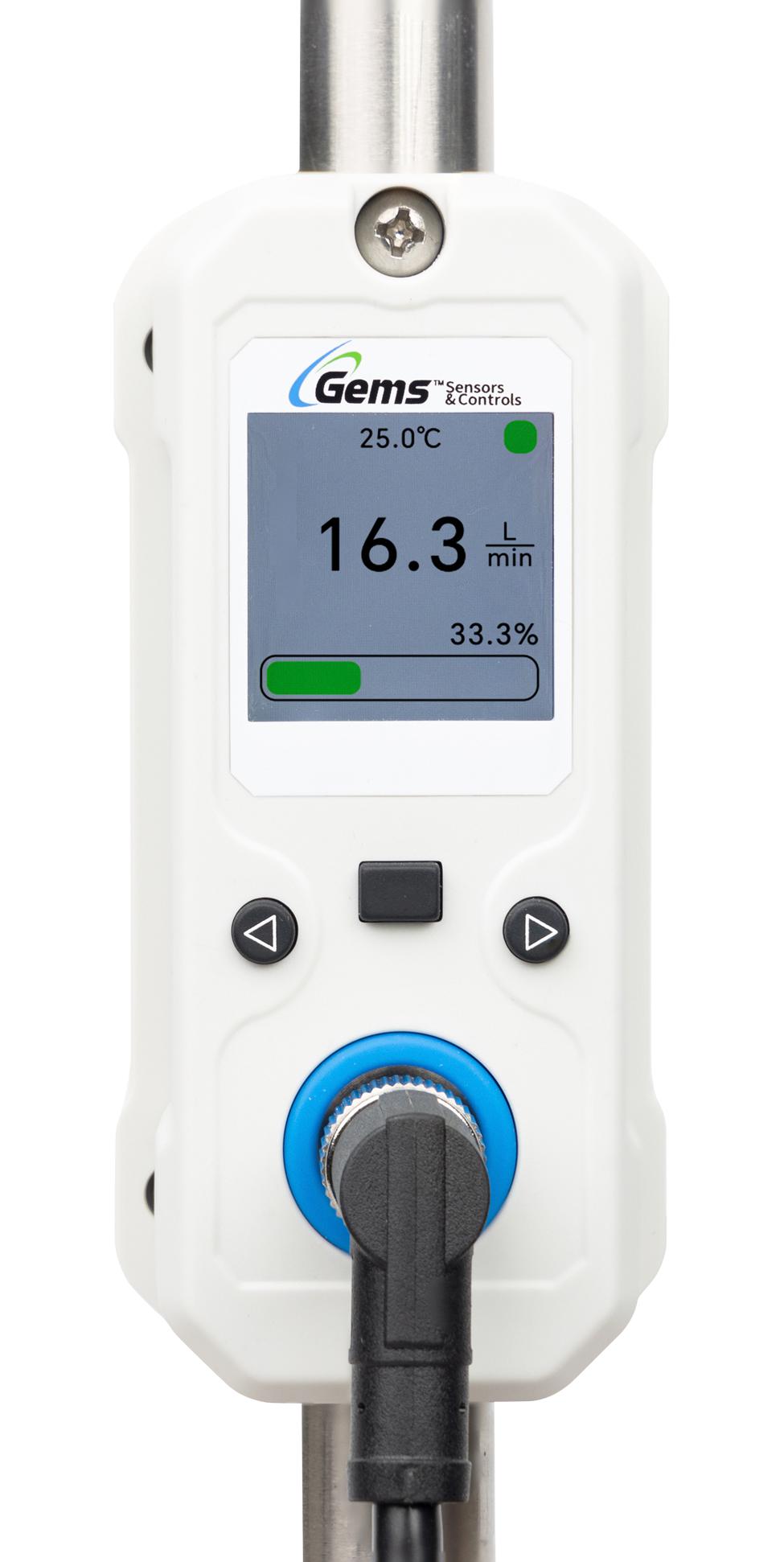

- Elegant true-colour LCD interface with rotatable orientation
- Ambient temperature range from -10 to 60°C
- IP rating: IP66
- 100l/min max flow rate
- Input power of 12 to 30V DC with reverse polarity protection
- 4-20mA and MODBUS output
- Additional MODBUS RTU communication interface and analogue temperature measurement
Product details
| Sensor Type |
Ultrasonic Flowmeter |
| Flow Rate Max |
100l/min |
| Operating Pressure Max |
- |
| Supply Voltage Max |
30VDC |
| Process Connection Size |
- |
| Sensor Mounting |
Clamp Mount |
| Operating Temperature Max |
60°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Flow Rate Min |
- |
| Operating Pressure Min |
- |
| Supply Voltage Min |
12VDC |
| Accuracy |
± 2% |
| Process Connection Type |
- |
| Operating Temperature Min |
-10°C |
| Product Range |
XFT Series |
Other details
| Brand |
GEMS SENSORS |
| Part Number |
XFTDFCL100 |
| Quantity |
Each |
| Technical Data Sheet (538.79KB) EN |
View or download |
