Product Overview

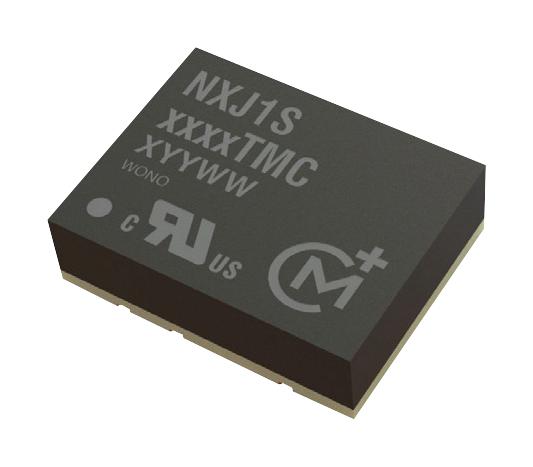

MURATA POWER SOLUTIONS NXJ1S0505PT6MC-R7 Isolated Surface Mount DC/DC Converter, ITE, Industrial & Medical, Surface Mount DIP, 1 W
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
200mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
4.2kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
4.04mm |
| Input Voltage DC Min |
4.5V |
| Product Range |
NXJ1T Series |
| DC / DC Converter Type |
Surface Mount DIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
5V |
| Width |
10.55mm |
| Depth |
13.7mm |
| Input Voltage DC Max |
5.5V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MURATA POWER SOLUTIONS |
| Part Number |
NXJ1S0505PT6MC-R7 |
| Quantity |
Each |
| Technical Data Sheet (357.63KB) EN |
View or download |
