Product Overview

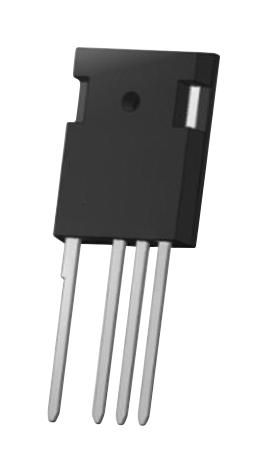

ONSEMI UG4SC075009K4S Silicon Carbide MOSFET, Single, N Channel, 106 A, 750 V, 0.0115 ohm, TO-247
Product details
| MOSFET Module Configuration |
Single |
| Continuous Drain Current Id |
106A |
| Drain Source On State Resistance |
0.0115ohm |
| No. of Pins |
4Pins |
| Gate Source Threshold Voltage Max |
5.5V |
| Operating Temperature Max |
175°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Channel Type |
N Channel |
| Drain Source Voltage Vds |
750V |
| Transistor Case Style |
TO-247 |
| Rds(on) Test Voltage |
12V |
| Power Dissipation |
375W |
| Product Range |
EliteSiC Series |
Other details
| Brand |
ONSEMI |
| Part Number |
UG4SC075009K4S |
| Quantity |
Each |
| Technical Data Sheet (579.62KB) EN |
View or download |
