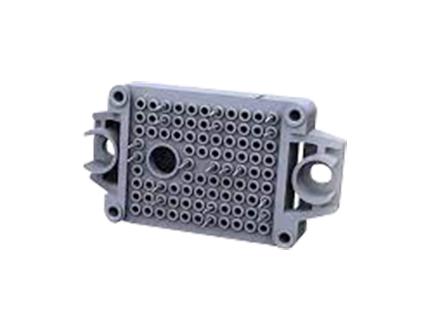

ONSEMI NXH015F120M3F1PTG Silicon Carbide MOSFET, Full Bridge, N Channel, 77 A, 1.2 kV, 0.019 ohm, Module
Product details
| MOSFET Module Configuration |
Full Bridge |
| Continuous Drain Current Id |
77A |
| Drain Source On State Resistance |
0.019ohm |
| No. of Pins |
22Pins |
| Gate Source Threshold Voltage Max |
4.4V |
| Operating Temperature Max |
150°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Channel Type |
N Channel |
| Drain Source Voltage Vds |
1.2kV |
| Transistor Case Style |
Module |
| Rds(on) Test Voltage |
18V |
| Power Dissipation |
198W |
| Product Range |
- |
Other details
| Brand |
ONSEMI |
| Part Number |
NXH015F120M3F1PTG |
| Quantity |
Each |
| Technical Data Sheet (710.84KB) EN |
View or download |
