Product Overview

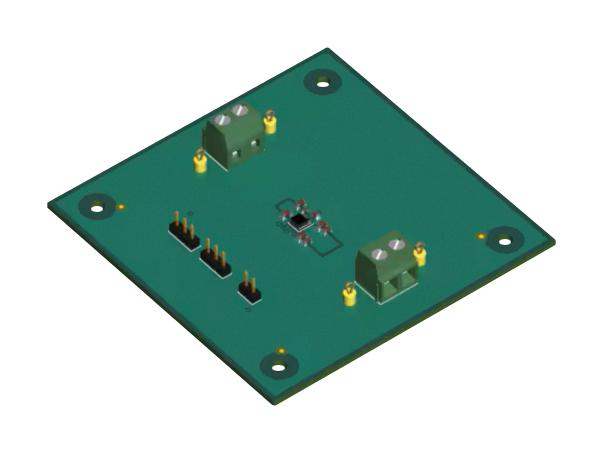

EV1604A-3300-A is an evaluation board provided for the FS1604A-3300 µPOL™ product. The board generates an output voltage (VOUT) of 3.3V for loads of 0–4A from an input voltage (PVIN) of 12V.
- Input voltage (PVIN) = +12V
- Output voltage (VOUT) = +3.3V
- Output load (IO) = 0 to 4A
- Switching frequency (FSW) = 1.56MHz
- Output capacitance (CO) = 2x22µF (MLCC)
- Input capacitance (CIN) = 2x22µF (MLCC)
- Dimension (width x length x thickness) = 76.2 x 76.2 x 1.6mm
Product details
| Silicon Manufacturer |
TDK |
| Kit Application Type |
Power Management - Voltage Regulator |
| Kit Contents |
Evaluation Board FS1604A-3300-AL |
| Automotive Qualification Standard |
- |
| Silicon Core Number |
FS1604A-3300-AL |
| Application Sub Type |
Micro-Point-of-Load (µPOL) DC-DC Converter |
| Product Range |
- |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
TDK |
| Part Number |
EV1604A-3300-A |
| Quantity |
Each |
| Technical Data Sheet (3.29MB) EN |
View or download |
