Product Overview

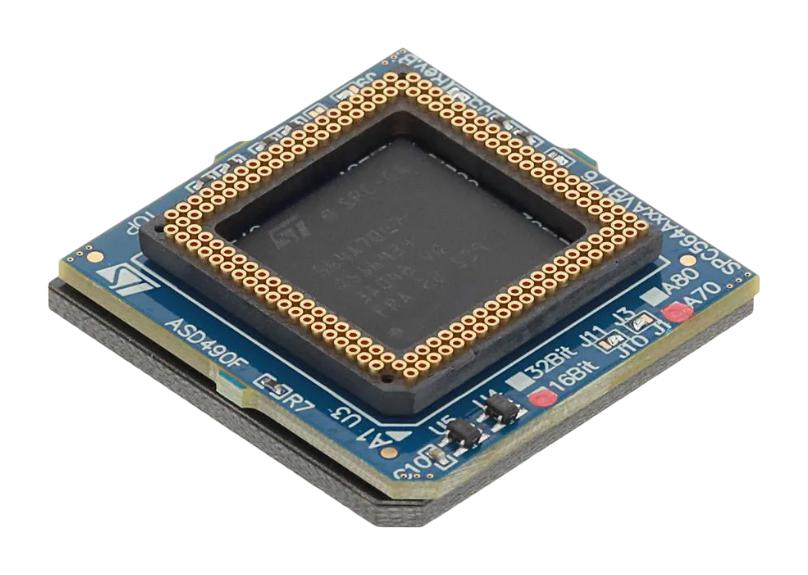

SPC564A70AVB176 is a VertiCal base board for A-Line 2M in LQFP176 target package. The vertical adapter is designed to substitute the device on an ECU version used during engine calibration. All VertiCal hardware is designed to support a standardized tool connector, allowing a variety of calibration and debug hardware to be connected and reused.
- Requires POLYPOD-TQ176 for mounting on application board
- VertiCal interconnect supported by calibration tool developers, ensuring flexibility in tool choice
- On-board latch providing 16-bit demux bus interface from SPC564AXX 16bit mux calibration interface
- Support for Nexus-based debug tools even if application PCB does not include Nexus connector
- Nexus functionality with 12 Message Data Out (MDO) signals
- Support for full-feature calibration tools, via availability of comprehensive set of device signals
- Allows system calibration without impacting standard MCU I/O resources
- Allows system calibration regardless of availability of standard MCU external bus
Product details
| IC Product Type |
Calibration / Emulation System |
| Core Architecture |
Power Architecture |
| Kit Contents |
Vertical Base Board SPC564A70L7 |
| Product Range |
- |
| Silicon Family Name |
SPC5 |
| Core Sub-Architecture |
e200z4d |
| Features |
Vertical Adapter Designed to Substitute the Device on an ECU Version Used During Engine Calibration |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
SPC564A70AVB176 |
| Quantity |
Each |
| Technical Data Sheet (109.75KB) EN |
View or download |
